ABB 1SDA068059R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

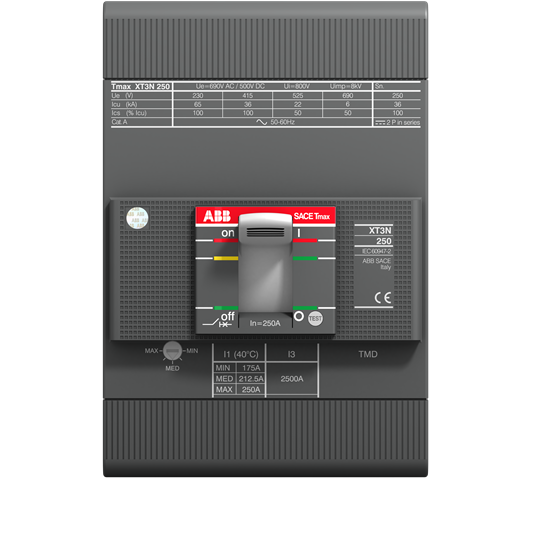

C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 250-2500 AXT3N 250 TMD 250-2500 3p F F
ABB 1SDA068059R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- Brand / Label
- ABB
- CAD Dimensional Drawing
- 1SDH001295R0409
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 17.8 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 2500 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 37.5 kA(230 V AC) 37.5 kA(240 V AC) 37.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 18.75 kA(500 V AC) 15 kA(525 V AC) 9.75 kA(690 V AC) 3.75 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 25 kA(500 V AC) 20 kA(525 V AC) 13 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 175...250 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2350
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 1.7 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A2294
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 6e02ed7f-17b7-4341-9a54-addfe501266a Italy (IT)
- Simplified SCIP
- d4f45baa-ea21-4c9e-9189-1b75dc080893 Spain (ES)dd18c2d5-d07c-4f4a-9537-929096aa340a Netherlands (NL)c2c064b4-68e9-444e-b795-3162405604d5 Netherlands (NL)7f17ec9d-7631-4488-b853-4de4c94aa81c Germany (DE)e4d6c1d5-5cd1-4ae7-9434-ae519f839247 Sweden (SE)f2253e3c-e8cf-43e9-ad91-7006b1eda1a3 Denmark (DK)7a06855e-fdcd-42a1-adb4-7a036b2aa2fd Germany (DE)c4c4a8ef-9791-4d17-9b97-88c358732875 Poland (PL)68e4f3ad-03c4-47f8-9732-c2c181bb6d26 Norway (NO)0e4638d5-976e-49c6-b94a-430e73f5e716 Finland (FI)26af04db-d477-408d-b429-c27e7a32b1a8 Netherlands (NL)c7169fb9-353e-4ad1-a7b9-f55758d503ba Croatia (HR)9690de18-268a-4812-a2e9-4cfc22c37060 Czech Republic (CZ)73a45bca-2680-4dd9-9d08-e5d52bef7b1a Poland (PL)4fdf049f-4055-437f-b00c-732b3a20971e Netherlands (NL)016b2e28-6f0e-43af-991e-8acac3433e5b Estonia (EE)ecb4b84a-ea71-4e87-8f8e-c9095f385895 Greece (GR)c11f564b-92ab-437b-8c0b-66c533b18139 Portugal (PT)c9c2a2c8-b424-42d1-b418-62bc7e3336c2 Bulgaria (BG)f17b83a9-6cf5-4ed8-9a8a-ad5bf35821ca Sweden (SE)338fe678-9ff9-475b-b4c5-488832a7dc4a Poland (PL)2ecaed7e-730d-48c1-95f8-4f5d8dbb6f04 France (FR)854d4adb-7062-4e49-9888-eba42ff7a55f Germany (DE)fe453ba5-5af8-4dd1-829f-e48ec3218a3b Germany (DE)e9f8710e-d4ea-4b03-8e77-b1e789d499f6 France (FR)228278be-3f3c-4121-ab92-d00b43371275 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3641005
- E-Number (Sweden)
- 3182434
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT3NE3250AFF000XXX
