ABB 1SDA068058R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

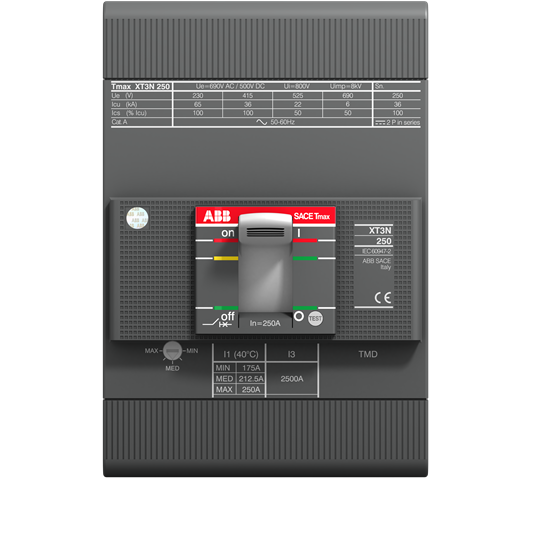

C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 200-2000 AXT3N 250 TMD 200-2000 3p F F
ABB 1SDA068058R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0409
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 13.2 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 200 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 2000 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 37.5 kA(230 V AC) 37.5 kA(240 V AC) 37.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 18.75 kA(500 V AC) 15 kA(525 V AC) 9.75 kA(690 V AC) 3.75 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 25 kA(500 V AC) 20 kA(525 V AC) 13 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 140...200 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2350
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 1.7 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A2294
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- c29a751a-be17-4df0-832b-bc41e0056527 Italy (IT)
- Simplified SCIP
- a16b56d1-dc99-4c55-991d-e62075649be4 Poland (PL)dfa380c0-88d1-44e8-af7c-e93b491cd27e Netherlands (NL)000182ba-09df-4f4a-98fe-0e65e416447e Estonia (EE)d7fb814f-534f-4706-9149-d5b6e015862e Greece (GR)a34ffad3-0654-4dbf-9a2f-b75b6deeab05 Portugal (PT)9c31c87a-6577-4cf2-bff2-c659d2cf4713 Bulgaria (BG)79b8eb5a-a8e6-4b80-8e98-4334c54b8e4c Sweden (SE)9daa2fe5-d7c4-47cb-bc82-54a00264a086 Denmark (DK)8d27fed3-357b-428d-979b-bd2bc3977046 Poland (PL)ab930018-740a-410f-8c3b-e92c9c0ec4f3 France (FR)b215cde0-c453-44a0-9aa2-b68b61004cb4 Germany (DE)24dff1fc-a989-4f93-9843-7650391183e8 Norway (NO)1c4970d6-6ba9-477c-bfc1-915880cf6b27 Finland (FI)419d4f23-39e0-4f3e-ba0d-19a2cbc2fd0d Netherlands (NL)4d2c6bbe-8ade-448c-8147-77a16c403875 Germany (DE)517f22a2-ece3-48fc-a690-b648e4136f31 Netherlands (NL)e27935fd-02aa-4246-a5db-a765ca2c2038 Croatia (HR)c5b64a1c-2eb4-40cf-b9d1-83c1532e04bb Czech Republic (CZ)393488f6-8465-4fa4-966f-dc34e6482b65 Sweden (SE)9e68334a-59d9-4bbf-a724-516447abb72b Germany (DE)054c53f3-09ac-4472-a9ff-0daddffcab29 Poland (PL)a40abdb3-7c61-4d82-8639-25e8b744f038 Germany (DE)bb00608f-06a1-4498-8dc3-106fc600396d France (FR)cc2c475a-5ea9-4b8f-94d7-b8bc65721e28 Netherlands (NL)81f7af18-dc48-4a22-8cf6-aac1eb368d2c Spain (ES)3dea16fd-bfa8-4e70-8369-cb90cf81f797 Netherlands (NL)
