ABB 1SDA068056R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

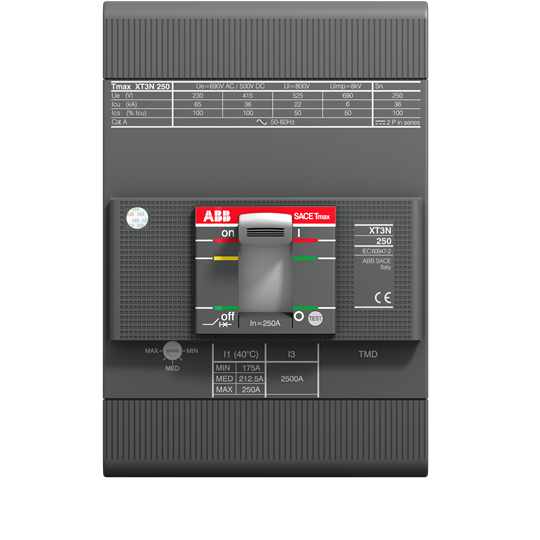

C.BREAKER TMAX XT3N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 AXT3N 250 TMD 125-1250 3p F F
ABB 1SDA068056R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0409
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 6.6 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Leistungsschalter
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 125 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1250 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 37.5 kA(230 V AC) 37.5 kA(240 V AC) 37.5 kA(380 V AC) 27 kA(415 V AC) 27 kA(440 V AC) 18.75 kA(500 V AC) 15 kA(525 V AC) 9.75 kA(690 V AC) 3.75 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 25 kA(500 V AC) 20 kA(525 V AC) 13 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M8
- Release
- TMD
- Release Type
- TM
- Setting Range
- 87.5...125 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.5 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2350
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 150 mm
- Product Net Weight
- 1.7 kg
- Product Net Width
- 105 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A2294
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 060c77d0-4139-433d-8c4f-d88fed44fc2e Italy (IT)
- Simplified SCIP
- 4cbaf6e3-a5eb-489d-87ef-be4d181bba1f Germany (DE)f4813ee8-4bd9-4710-8ff1-8d585c08669f Sweden (SE)6af48308-c890-4b2f-ad9e-0afa20ced15f Germany (DE)126e5ef6-17ae-46de-a9b7-9c1853c29cdf Croatia (HR)15f21779-11f3-4f57-92e9-f37f6483083e Poland (PL)7b480bd1-c869-4c52-bea3-4a19080c72ed Norway (NO)25c5d0c6-03f0-4059-bf42-b4378710a580 Finland (FI)64a714a6-7109-48df-a95b-492398066c81 Netherlands (NL)26082a9a-c241-4d79-932e-0e7c89c4e58b Germany (DE)1b1be860-0d28-498d-b281-1b2ce33735d8 Netherlands (NL)167dbb7e-a9f8-4490-a102-6c4dd7c1b630 Czech Republic (CZ)6f5df75c-cad7-4d20-b825-45766f246b0d Poland (PL)a4d437ea-7592-46d1-bd07-7a63e34a6e4b Poland (PL)ff6419d3-fd83-41cf-ad8d-e5381c63e5ec France (FR)025d5208-4f7c-4312-a9a3-743c2d22343a Germany (DE)983587e3-b4cf-4f62-82e6-3ae9c503a14d Netherlands (NL)beeb293b-bedc-486d-9f3f-a661b1df9ff5 Estonia (EE)03cc8dc5-f6aa-43b2-9bb7-0c2f98dd2546 Greece (GR)c62f0a68-0fd8-4064-9775-b15cd3ca285d Portugal (PT)a535e04b-4062-4c86-a26d-84fbd430ddd9 Bulgaria (BG)3f53a480-95b2-4557-8dfe-27ac194e8d36 Sweden (SE)0bbb0b9d-f39f-460a-bdb6-f315bfb6e89c Denmark (DK)5054a3ed-3e76-43c2-8f4e-8aa9338abba4 France (FR)cafb9e83-2c21-4eb9-8fe2-1f91ff9cc802 Netherlands (NL)6ce247f6-29d5-45a3-bb60-66f86d971b82 Spain (ES)75002095-85e4-4711-8c65-cecf9b6bd794 Netherlands (NL)
