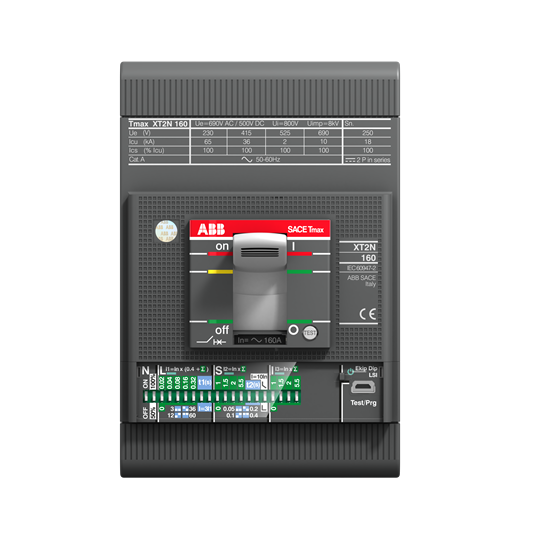

ABB 1SDA067859R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT2H 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 63 AXT2H 160 Ekip LS/I In=63A 3p F F
ABB 1SDA067859R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1001
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 32.5..100 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 1.7 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 63 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 30 kA(690 V AC) 15 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(240 V AC) 100 kA(380 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(525 V AC) 30 kA(690 V AC) 15 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- Ekip LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- XT2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2349
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 90 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1897
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 11164a43-b119-4677-9283-572494d8ba28 Italy (IT)
- Simplified SCIP
- b73ae5a0-3698-4b9d-9984-96f1c13f7aea France (FR)dd04f114-b467-4cb4-be9a-cec9f91ee010 Sweden (SE)391b3c00-69cf-48d1-b29f-61a136cc6492 Poland (PL)ab4608a7-bf91-4c98-9988-07cddaef470f Norway (NO)07256526-45e5-4870-88ac-fa2fc33d221b Finland (FI)7dc9bd17-fc56-429b-9f98-9d1296e57848 Netherlands (NL)5f39a986-9789-42fc-bb57-4a628bdcd5a7 Germany (DE)4a4da4c3-ec2d-4206-ad9d-b8e3fca4244a Denmark (DK)cf3aca86-9235-4d37-88eb-60316eb00fa4 Netherlands (NL)084f66b4-6662-4c45-85e8-0c9533f28f00 Estonia (EE)acce6e6e-d116-4727-a886-ed1619436f67 Greece (GR)118f7b51-d7c9-44dc-9e1b-c1d6a95614f7 Portugal (PT)10d7dc16-8f27-4f8f-af40-682e193d3efc Germany (DE)cec58a95-b7d5-4841-a7ca-c8ef31fb5876 Croatia (HR)de829ca0-f6a7-4c18-adb4-bc7ab5476479 Czech Republic (CZ)7912686b-2080-4ec2-9914-83be697e1f35 Poland (PL)194546f9-f305-4115-8b66-c7762fa5fa94 Netherlands (NL)9572a023-59e4-479d-9892-74edf91df2ce Germany (DE)aeec9433-585f-4c26-bea4-da2d6772d615 Germany (DE)c9832520-2368-4713-aab8-4943a23d0def France (FR)fcb18477-25ba-4740-9c6f-8a95ab422316 Netherlands (NL)6159f85e-9c96-4cea-837b-ed4119bcd9ee Spain (ES)d5bd8e2f-aa3b-4c8d-bfac-73a426c5ccf4 Netherlands (NL)dbbaaa22-92bc-485c-b378-1a37e3a77d6d Bulgaria (BG)2e63445f-a6af-4490-82d7-a2b48d48b1c3 Sweden (SE)16f6c309-f229-4a6a-9693-13320a364ec7 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT2HE3063EFF000XXX
