ABB 1SDA067428R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

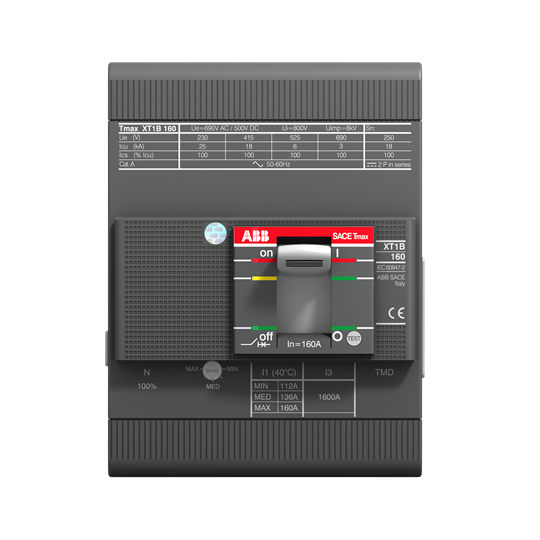

C.BREAKER TMAX XT1N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 160-1600 A FULLY RATED NEUTRALXT1N 160 TMD 160-1600 4p F F InN=100%
ABB 1SDA067428R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0080
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 45.5 ... 80 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 15 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 160 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1600 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 18 kA(500 V AC) 15 kA(525 V AC) 11 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 22 kA(690 V AC) 6 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 112...160 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT1
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.9 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2347
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 101.6 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1890
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 0ac951c1-9b40-4f47-a751-2ab056ffe1d8 Italy (IT)
- Simplified SCIP
- 3d1957e6-6fff-4ac5-a4de-caa94ab5c364 France (FR)585d169a-087c-4da7-ad22-14f7211e98a1 Netherlands (NL)ff4fab3b-79ba-48cf-8ed4-5efe459324fa Estonia (EE)f70a208d-8500-4b87-8e80-56eb4dcb62f2 Greece (GR)ab874939-835a-44db-8d0f-0ae656d2b42c Portugal (PT)3d1957e6-6fff-4ac5-a4de-caa94ab5c364 France (FR)bd36d84d-14a0-4614-8240-3ca69ef29c39 Sweden (SE)9be1dbef-ca32-4fe8-b574-89b5a88b48ee Germany (DE)de6316e9-bdb1-43e5-b16d-b95b72c5dfb4 Germany (DE)602c2f91-c382-4023-97d1-6af1a6d6081a France (FR)8cba98fa-d5d2-4ec5-bf3c-1960563892a0 Netherlands (NL)bd36d84d-14a0-4614-8240-3ca69ef29c39 Sweden (SE)9be1dbef-ca32-4fe8-b574-89b5a88b48ee Germany (DE)de6316e9-bdb1-43e5-b16d-b95b72c5dfb4 Germany (DE)602c2f91-c382-4023-97d1-6af1a6d6081a France (FR)8cba98fa-d5d2-4ec5-bf3c-1960563892a0 Netherlands (NL)17496149-365a-445d-af68-54e4bc6db1db Spain (ES)14cd69a0-0aec-4cca-80b5-96c95c8af3e4 Netherlands (NL)e3656c3b-bce5-47e5-afeb-7f009b696b0a Bulgaria (BG)de206646-cbea-472d-bc5e-38f523d75152 Sweden (SE)14cd69a0-0aec-4cca-80b5-96c95c8af3e4 Netherlands (NL)cce5ff42-1b35-421b-84db-020aa9af0a7a Poland (PL)ff4fab3b-79ba-48cf-8ed4-5efe459324fa Estonia (EE)f70a208d-8500-4b87-8e80-56eb4dcb62f2 Greece (GR)ab874939-835a-44db-8d0f-0ae656d2b42c Portugal (PT)e3656c3b-bce5-47e5-afeb-7f009b696b0a Bulgaria (BG)de206646-cbea-472d-bc5e-38f523d75152 Sweden (SE)cce5ff42-1b35-421b-84db-020aa9af0a7a Poland (PL)17496149-365a-445d-af68-54e4bc6db1db Spain (ES)a8e7d90f-4315-4279-a905-8664948cfaff Poland (PL)4dc6cdf8-32d7-49b1-a117-c0ce3ad2f633 Norway (NO)c3b8ec46-1389-4df7-8ed0-faeafd3b6c2d Finland (FI)17032ab3-d170-46a5-983e-858cc49ab98d Netherlands (NL)a4916536-3f0a-4c32-979a-0ef6d86b33ea Germany (DE)7f380bd4-62bf-43fd-b963-40441f5c8867 Denmark (DK)29282873-f42c-494c-a6f0-215e2e76a9f8 Germany (DE)31575187-3d16-43b1-ad84-85ff5a7ee577 Croatia (HR)99bddbbc-3e48-4a6d-b5b0-61c3be192e43 Czech Republic (CZ)3024527b-6e7a-4d6a-a536-159275b759d0 Poland (PL)83801f67-afd3-4187-897a-3539e975ecba Netherlands (NL)585d169a-087c-4da7-ad22-14f7211e98a1 Netherlands (NL)a8e7d90f-4315-4279-a905-8664948cfaff Poland (PL)4dc6cdf8-32d7-49b1-a117-c0ce3ad2f633 Norway (NO)c3b8ec46-1389-4df7-8ed0-faeafd3b6c2d Finland (FI)17032ab3-d170-46a5-983e-858cc49ab98d Netherlands (NL)a4916536-3f0a-4c32-979a-0ef6d86b33ea Germany (DE)7f380bd4-62bf-43fd-b963-40441f5c8867 Denmark (DK)29282873-f42c-494c-a6f0-215e2e76a9f8 Germany (DE)31575187-3d16-43b1-ad84-85ff5a7ee577 Croatia (HR)99bddbbc-3e48-4a6d-b5b0-61c3be192e43 Czech Republic (CZ)3024527b-6e7a-4d6a-a536-159275b759d0 Poland (PL)83801f67-afd3-4187-897a-3539e975ecba Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Sweden)
- 3182447
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT1NE4160AFF000XXX
