ABB 1SDA067422R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

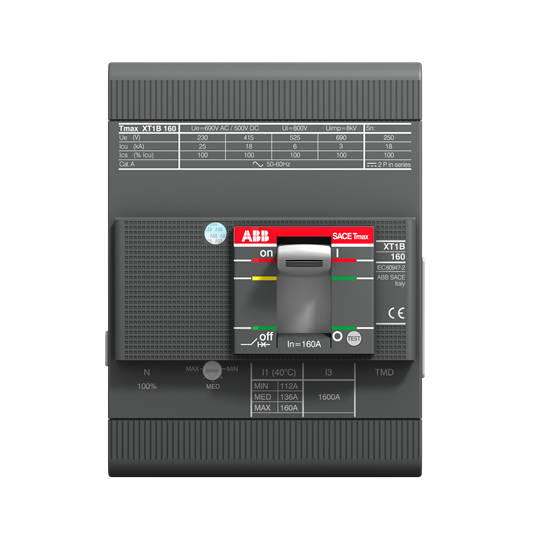

C.BREAKER TMAX XT1N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 63-630 AXT1N 160 TMD 63-630 4p F F
ABB 1SDA067422R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0080
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 45.5 ... 80 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 4.3 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 63 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 630 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 50 kA(230 V AC) 50 kA(240 V AC) 50 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 18 kA(500 V AC) 15 kA(525 V AC) 11 kA(690 V AC) 5 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 22 kA(690 V AC) 6 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- TMD
- Release Type
- TM
- Setting Range
- 44.1...63 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT1
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.9 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2347
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 101.6 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1890
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 2939a495-94f9-4df0-8d09-b4cba9a7f42d Italy (IT)
- Simplified SCIP
- 4bd11e1d-ff97-4501-9a00-ef7d79cbdb22 Portugal (PT)011ef0f3-3c0b-4c15-ba84-f08d30654c92 Bulgaria (BG)a1696877-1e77-4c91-8b04-a5884484b9fd Sweden (SE)80cc1f53-865f-4127-b5cf-7fdf2da1c3d3 Poland (PL)0ca8500a-7b2d-42de-bb8f-88b2b37b77b5 Norway (NO)f255df08-29c5-4eb8-b909-ca0458f42e22 Finland (FI)0aa80ded-6cd3-45d7-a85a-8452f513e774 Netherlands (NL)11c3cc78-2daf-46f8-8e0c-62a65394b065 Germany (DE)22989b0b-d684-4f76-9344-31069da595f9 Estonia (EE)96e1028e-8f81-4ea8-b646-4352edbf8bd3 Greece (GR)4bd11e1d-ff97-4501-9a00-ef7d79cbdb22 Portugal (PT)835afb38-6457-4e0a-b269-af612e770984 Sweden (SE)b9f21ee6-ba4b-4ca8-be2f-8e900f877587 Germany (DE)9ff49ab2-0c21-45d9-83cc-710dd431a944 Germany (DE)48d6d7f6-f1f3-44a6-abf6-3e5edd1dd7e1 France (FR)78bc6da9-ab27-4b87-bbad-75d9b1934ee4 Denmark (DK)216e98ed-7c85-46e2-b89b-b4831def4243 Germany (DE)ab426f0d-e487-40d4-9b85-9b185357d746 Croatia (HR)5a8a2d93-1a6b-40a9-83a2-5b6b975fcba4 Czech Republic (CZ)25b44094-4613-4582-a00b-55928a573558 Poland (PL)8db77469-eb15-415f-a9d5-ac2653486444 Netherlands (NL)fdc61351-732a-4076-b45a-38d4b72e87e3 Netherlands (NL)62a53cdd-bc77-42af-880b-80ab5c815de8 Netherlands (NL)6aaf5f75-4da4-415d-866f-2ac9fb2072b5 Poland (PL)25a10820-1bb6-4561-9456-5d374ac5f0e5 France (FR)470dbb81-2480-4117-837c-89f4864cd3bb Spain (ES)24f5fd2d-9774-4a24-8f53-1de373d7fc40 Netherlands (NL)011ef0f3-3c0b-4c15-ba84-f08d30654c92 Bulgaria (BG)a1696877-1e77-4c91-8b04-a5884484b9fd Sweden (SE)24f5fd2d-9774-4a24-8f53-1de373d7fc40 Netherlands (NL)6aaf5f75-4da4-415d-866f-2ac9fb2072b5 Poland (PL)25a10820-1bb6-4561-9456-5d374ac5f0e5 France (FR)835afb38-6457-4e0a-b269-af612e770984 Sweden (SE)b9f21ee6-ba4b-4ca8-be2f-8e900f877587 Germany (DE)9ff49ab2-0c21-45d9-83cc-710dd431a944 Germany (DE)48d6d7f6-f1f3-44a6-abf6-3e5edd1dd7e1 France (FR)62a53cdd-bc77-42af-880b-80ab5c815de8 Netherlands (NL)470dbb81-2480-4117-837c-89f4864cd3bb Spain (ES)80cc1f53-865f-4127-b5cf-7fdf2da1c3d3 Poland (PL)0ca8500a-7b2d-42de-bb8f-88b2b37b77b5 Norway (NO)f255df08-29c5-4eb8-b909-ca0458f42e22 Finland (FI)0aa80ded-6cd3-45d7-a85a-8452f513e774 Netherlands (NL)11c3cc78-2daf-46f8-8e0c-62a65394b065 Germany (DE)78bc6da9-ab27-4b87-bbad-75d9b1934ee4 Denmark (DK)216e98ed-7c85-46e2-b89b-b4831def4243 Germany (DE)ab426f0d-e487-40d4-9b85-9b185357d746 Croatia (HR)5a8a2d93-1a6b-40a9-83a2-5b6b975fcba4 Czech Republic (CZ)25b44094-4613-4582-a00b-55928a573558 Poland (PL)8db77469-eb15-415f-a9d5-ac2653486444 Netherlands (NL)fdc61351-732a-4076-b45a-38d4b72e87e3 Netherlands (NL)22989b0b-d684-4f76-9344-31069da595f9 Estonia (EE)96e1028e-8f81-4ea8-b646-4352edbf8bd3 Greece (GR)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3640542
- E-Number (Sweden)
- 3182420
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
