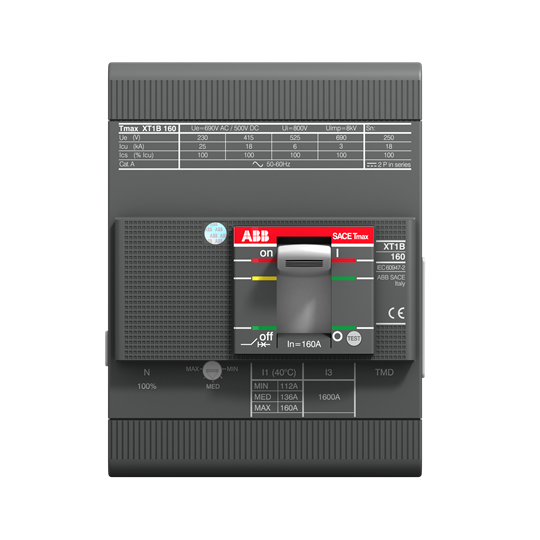

ABB 1SDA067410R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT1C 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 160-1600 A FULLY RATED NEUTRALXT1C 160 TMD 160-1600 4p F F InN=100%
ABB 1SDA067410R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0080
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 45.5 ... 80 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 15 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 160 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1600 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 12.5 kA(500 V AC) 9 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 25 kA(500 V AC) 18 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 112...160 A
- Short-Circuit Performance Level
- C
- Standards
- IEC
- Sub-type
- XT1
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.9 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2347
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 101.6 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1890
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b3a6e17d-8853-4b28-96d6-13ac4a29e0af Italy (IT)
- Simplified SCIP
- 64316cdd-7ef1-48e6-8210-8cd7634e6115 Poland (PL)ddf5c063-a647-4dfc-8837-7781de6c5035 France (FR)0cbd6a1f-8fbe-4ce7-b86c-d905abce4e78 Sweden (SE)46fc09a7-c01c-4a86-8c86-1e15db9ddddd Greece (GR)4d2c1e03-1026-4a24-a714-ba61c1b1aeee Portugal (PT)573806cd-5dc7-4a36-b2c9-3af14e648b64 Bulgaria (BG)f2cec4b9-6375-4b09-a143-cbfcc2ccd71e Sweden (SE)74afcc10-c8eb-4b64-826f-c6e09a31053c Norway (NO)87552666-a6c6-4548-a8e5-40917c1b57dc Finland (FI)249250e9-16fb-4336-840d-3ddc106220b0 Netherlands (NL)4a1567df-fca8-4001-a5f2-636daa499d03 Germany (DE)3bd810fd-8f98-4a28-a7a5-d48686d3b52f Denmark (DK)1089ac8c-be20-4529-88f1-e56272ee5745 Germany (DE)9f570cc2-9e42-4bc1-a196-c64493922610 Croatia (HR)9ca7775f-04be-4da1-95fd-8425bed150ad Czech Republic (CZ)d9af99e0-6e58-4be1-b105-7d6331de21e1 Poland (PL)cc8e596f-2606-4b6a-9f71-e1624c107c2a Netherlands (NL)02115938-fed4-4469-bc5b-6f21ac2250c7 Netherlands (NL)56e9af4f-b0db-42d7-8296-ae9b206e45bd Estonia (EE)4d2c1e03-1026-4a24-a714-ba61c1b1aeee Portugal (PT)4e4b3496-d89c-46fc-b3d7-7c3014c9ae11 Germany (DE)04bf539e-4478-4a6d-b752-29b131601c1a Germany (DE)5002da91-49cf-4761-8f5b-0ab42e5e7bdc France (FR)12f6c623-68ef-4936-b8a9-228e974c7950 Netherlands (NL)11f40390-af61-4605-91a7-7be6ad1a47a4 Spain (ES)5e4194ae-657e-453f-bdf9-c3df7d1918b0 Netherlands (NL)46fc09a7-c01c-4a86-8c86-1e15db9ddddd Greece (GR)573806cd-5dc7-4a36-b2c9-3af14e648b64 Bulgaria (BG)f2cec4b9-6375-4b09-a143-cbfcc2ccd71e Sweden (SE)5e4194ae-657e-453f-bdf9-c3df7d1918b0 Netherlands (NL)64316cdd-7ef1-48e6-8210-8cd7634e6115 Poland (PL)ddf5c063-a647-4dfc-8837-7781de6c5035 France (FR)0cbd6a1f-8fbe-4ce7-b86c-d905abce4e78 Sweden (SE)4e4b3496-d89c-46fc-b3d7-7c3014c9ae11 Germany (DE)04bf539e-4478-4a6d-b752-29b131601c1a Germany (DE)5002da91-49cf-4761-8f5b-0ab42e5e7bdc France (FR)12f6c623-68ef-4936-b8a9-228e974c7950 Netherlands (NL)11f40390-af61-4605-91a7-7be6ad1a47a4 Spain (ES)ff3838eb-1489-4dd2-b38a-8d6e6fb45332 Poland (PL)74afcc10-c8eb-4b64-826f-c6e09a31053c Norway (NO)87552666-a6c6-4548-a8e5-40917c1b57dc Finland (FI)249250e9-16fb-4336-840d-3ddc106220b0 Netherlands (NL)4a1567df-fca8-4001-a5f2-636daa499d03 Germany (DE)3bd810fd-8f98-4a28-a7a5-d48686d3b52f Denmark (DK)1089ac8c-be20-4529-88f1-e56272ee5745 Germany (DE)9f570cc2-9e42-4bc1-a196-c64493922610 Croatia (HR)9ca7775f-04be-4da1-95fd-8425bed150ad Czech Republic (CZ)d9af99e0-6e58-4be1-b105-7d6331de21e1 Poland (PL)cc8e596f-2606-4b6a-9f71-e1624c107c2a Netherlands (NL)02115938-fed4-4469-bc5b-6f21ac2250c7 Netherlands (NL)56e9af4f-b0db-42d7-8296-ae9b206e45bd Estonia (EE)ff3838eb-1489-4dd2-b38a-8d6e6fb45332 Poland (PL)
