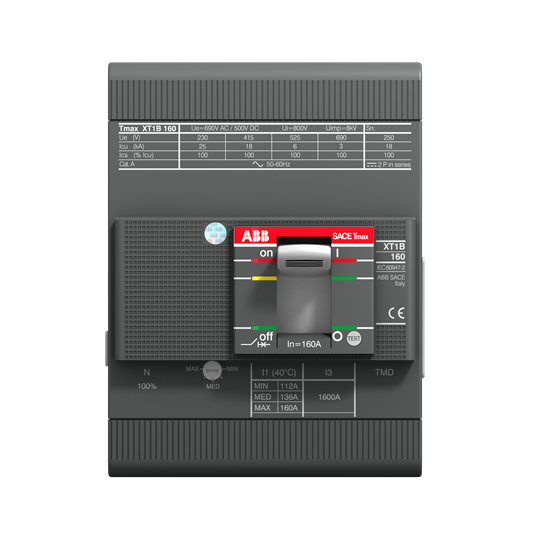

ABB 1SDA067409R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT1C 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 125-1250 A FULLY RATED NEUTRALXT1C 160 TMD 125-1250 4p F F InN=100%
ABB 1SDA067409R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0080
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 45.5 ... 80 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 10.7 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 125 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 1250 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 12.5 kA(500 V AC) 9 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 25 kA(500 V AC) 18 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 87.5...125 A
- Short-Circuit Performance Level
- C
- Standards
- IEC
- Sub-type
- XT1
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.9 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2347
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 101.6 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1890
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 6ea77752-e31b-4792-9bfe-726b67dc1ba6 Italy (IT)
- Simplified SCIP
- 1316216f-0b43-42df-9dce-7859cbe66ce2 Germany (DE)a8150c7f-2184-4645-8c28-a305ecba0ad2 Germany (DE)8a483e73-d9cd-419d-b5af-e3f1922746ff France (FR)0c0fa407-f270-4c35-a200-da4d6f0d4684 Netherlands (NL)95284535-c09a-47c8-840f-ce36b6448ed9 Spain (ES)491a9236-2ec8-4231-8c00-83cd96aebe0e Netherlands (NL)745796cb-94a2-49a9-b2eb-4ba7bc26d9d2 Greece (GR)f9cd1aa0-501c-49bf-a40e-07f6171a768a Bulgaria (BG)c719e9b2-8fda-4d92-b294-8b4aeeea5251 Sweden (SE)ac4fadb6-28ef-40d3-9300-37b6fbfab32b Poland (PL)ef48be63-9f5e-46cf-a1cc-cb34670ca554 Norway (NO)5cf4e330-e3ad-41d5-97e9-669161b7dc93 Finland (FI)076b67d0-0c71-4fe0-9202-580386a67c80 Netherlands (NL)4a8d54c7-2eb1-44d6-94c4-bc6bb7f592b5 Germany (DE)ef1accc5-aceb-4a68-992b-b582a34b951c Denmark (DK)278860e8-aad5-4adf-9bd7-c498508986ae Germany (DE)a2f13fda-a0ff-49df-8958-fdc68bf9f921 Croatia (HR)9a0a6d90-b389-42a4-8679-29308172688f Czech Republic (CZ)7a6f2797-d060-4869-9320-cf1bbc9974d7 Poland (PL)64990c92-2d25-430c-940d-d933d5da966b Netherlands (NL)04108e0c-2e6d-47c0-80c2-616b443faef5 Netherlands (NL)22ff4ecd-54a2-4fab-bda1-9a81460d51af Estonia (EE)c8b385bb-aa0b-449a-b5c1-4fa5d903b0b4 Portugal (PT)4309bd6c-5a60-42c2-9b5c-8cd9357b8832 Poland (PL)e6183440-2246-49ee-bd5c-721f09bcf41b France (FR)81067240-e5e2-4402-ab59-c7d391329330 Sweden (SE)04108e0c-2e6d-47c0-80c2-616b443faef5 Netherlands (NL)22ff4ecd-54a2-4fab-bda1-9a81460d51af Estonia (EE)745796cb-94a2-49a9-b2eb-4ba7bc26d9d2 Greece (GR)c8b385bb-aa0b-449a-b5c1-4fa5d903b0b4 Portugal (PT)f9cd1aa0-501c-49bf-a40e-07f6171a768a Bulgaria (BG)c719e9b2-8fda-4d92-b294-8b4aeeea5251 Sweden (SE)4a8d54c7-2eb1-44d6-94c4-bc6bb7f592b5 Germany (DE)ef1accc5-aceb-4a68-992b-b582a34b951c Denmark (DK)278860e8-aad5-4adf-9bd7-c498508986ae Germany (DE)a2f13fda-a0ff-49df-8958-fdc68bf9f921 Croatia (HR)9a0a6d90-b389-42a4-8679-29308172688f Czech Republic (CZ)7a6f2797-d060-4869-9320-cf1bbc9974d7 Poland (PL)64990c92-2d25-430c-940d-d933d5da966b Netherlands (NL)491a9236-2ec8-4231-8c00-83cd96aebe0e Netherlands (NL)0c0fa407-f270-4c35-a200-da4d6f0d4684 Netherlands (NL)95284535-c09a-47c8-840f-ce36b6448ed9 Spain (ES)ac4fadb6-28ef-40d3-9300-37b6fbfab32b Poland (PL)ef48be63-9f5e-46cf-a1cc-cb34670ca554 Norway (NO)5cf4e330-e3ad-41d5-97e9-669161b7dc93 Finland (FI)076b67d0-0c71-4fe0-9202-580386a67c80 Netherlands (NL)4309bd6c-5a60-42c2-9b5c-8cd9357b8832 Poland (PL)e6183440-2246-49ee-bd5c-721f09bcf41b France (FR)81067240-e5e2-4402-ab59-c7d391329330 Sweden (SE)1316216f-0b43-42df-9dce-7859cbe66ce2 Germany (DE)a8150c7f-2184-4645-8c28-a305ecba0ad2 Germany (DE)8a483e73-d9cd-419d-b5af-e3f1922746ff France (FR)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT1CE4125AFF000XXX
