ABB 1SDA067405R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

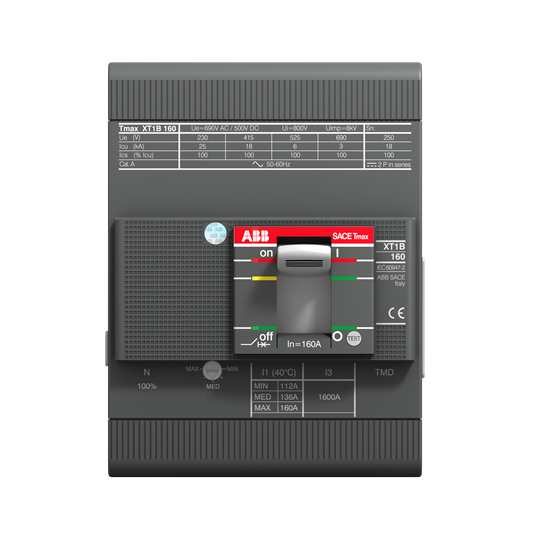

C.BREAKER TMAX XT1C 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 80-800 AXT1C 160 TMD 80-800 4p F F
ABB 1SDA067405R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001295R0080
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 45.5 ... 80 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 4.8 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 80 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 800 A
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 12.5 kA(500 V AC) 9 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 40 kA(230 V AC) 40 kA(240 V AC) 40 kA(380 V AC) 25 kA(415 V AC) 25 kA(440 V AC) 25 kA(500 V AC) 18 kA(525 V AC) 8 kA(690 V AC) 4 kA(250 V DC) 2 Poles in Series 25 kA(500 V DC) 3 Poles in Series 25 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- TMD
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 56...80 A
- Short-Circuit Performance Level
- C
- Standards
- IEC
- Sub-type
- XT1
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 60.9 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2347
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 101.6 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1890
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b4b0d57b-eaed-48f5-a5aa-b0a3a791d76c Italy (IT)
- Simplified SCIP
- accc06aa-c953-43dc-acde-74a5704d31d8 Poland (PL)278521b2-18e1-472b-80c8-f0957672b07c Norway (NO)d8c708db-ff90-4dac-b5b9-94cb605ad33b Finland (FI)1206613f-1f7b-450c-bcff-cef5759f75bf Netherlands (NL)919a9a87-73c2-4e35-8b87-46be15ce697d Germany (DE)77bdd843-3a7e-40ee-b907-19ddb34895c4 Denmark (DK)97c82ce6-6c07-4cc4-a92e-15a7621e5a2e Germany (DE)3a1c888a-53d2-4d95-a2dd-bec2fb77bbcf Croatia (HR)f03b1e46-3896-43ce-9172-1b0b89002dbe Czech Republic (CZ)9df54a1c-1d45-46f3-9f84-5bc5004c07aa Poland (PL)bf5fabdb-52ae-40a3-944b-3283f42cfa14 Netherlands (NL)c705c95f-3c16-48a8-aa71-9021304cadc8 Netherlands (NL)dd314dd9-4ac3-4c5c-9347-3b0a5626119b Estonia (EE)60587267-bf2b-4b7e-a18b-10769c280b71 Greece (GR)be714808-e500-4440-8fbb-eb0280942062 Portugal (PT)ef4a0ad5-8fe3-4821-9c65-a7e4dd905724 Germany (DE)01cd25e6-03e4-471e-adab-e1a443f3e65e Germany (DE)2e0413f3-d6f1-46fa-bc9d-7469431da8a7 France (FR)b3d3e57d-8313-4221-a8ee-50fb87429a9c Netherlands (NL)f7274875-9104-40ee-a25d-89c5523ff1c4 Spain (ES)ce5f34df-192d-4911-b547-61c3354596d0 Netherlands (NL)95b48d55-a5bf-42f5-a592-48986e80c067 Bulgaria (BG)08f5546b-55ab-430e-83c7-c3f81f91065d Sweden (SE)ce5f34df-192d-4911-b547-61c3354596d0 Netherlands (NL)e93953a9-0203-4f75-b338-c8528df6fa89 Poland (PL)04584a8f-5b6b-4634-99bc-4e25938b7a0a France (FR)a2372b25-8c9f-4215-846f-cc078affc654 Sweden (SE)ef4a0ad5-8fe3-4821-9c65-a7e4dd905724 Germany (DE)01cd25e6-03e4-471e-adab-e1a443f3e65e Germany (DE)2e0413f3-d6f1-46fa-bc9d-7469431da8a7 France (FR)b3d3e57d-8313-4221-a8ee-50fb87429a9c Netherlands (NL)f7274875-9104-40ee-a25d-89c5523ff1c4 Spain (ES)accc06aa-c953-43dc-acde-74a5704d31d8 Poland (PL)278521b2-18e1-472b-80c8-f0957672b07c Norway (NO)d8c708db-ff90-4dac-b5b9-94cb605ad33b Finland (FI)1206613f-1f7b-450c-bcff-cef5759f75bf Netherlands (NL)919a9a87-73c2-4e35-8b87-46be15ce697d Germany (DE)77bdd843-3a7e-40ee-b907-19ddb34895c4 Denmark (DK)97c82ce6-6c07-4cc4-a92e-15a7621e5a2e Germany (DE)3a1c888a-53d2-4d95-a2dd-bec2fb77bbcf Croatia (HR)f03b1e46-3896-43ce-9172-1b0b89002dbe Czech Republic (CZ)9df54a1c-1d45-46f3-9f84-5bc5004c07aa Poland (PL)bf5fabdb-52ae-40a3-944b-3283f42cfa14 Netherlands (NL)c705c95f-3c16-48a8-aa71-9021304cadc8 Netherlands (NL)dd314dd9-4ac3-4c5c-9347-3b0a5626119b Estonia (EE)60587267-bf2b-4b7e-a18b-10769c280b71 Greece (GR)be714808-e500-4440-8fbb-eb0280942062 Portugal (PT)95b48d55-a5bf-42f5-a592-48986e80c067 Bulgaria (BG)08f5546b-55ab-430e-83c7-c3f81f91065d Sweden (SE)e93953a9-0203-4f75-b338-c8528df6fa89 Poland (PL)04584a8f-5b6b-4634-99bc-4e25938b7a0a France (FR)a2372b25-8c9f-4215-846f-cc078affc654 Sweden (SE)
