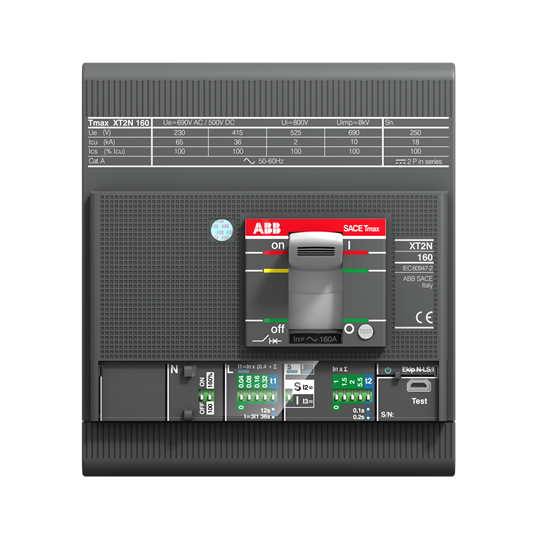

ABB 1SDA067095R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 160 A FULLY RATED NEUTRALXT2N 160 Ekip LS/I In=160A 4pFF InN=100%
ABB 1SDA067095R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1002
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 32.5..100 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 10.8 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 160 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- Ekip LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2349
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.6 kg
- Product Net Width
- 120 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1897
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 060aee7b-5a26-4fae-8f26-8f1c6617efea Italy (IT)
- Simplified SCIP
- 9eedccba-1741-4fb3-832c-b25430f4097a Portugal (PT)ad4eaa00-9906-4f87-84aa-ca6c3f7abc71 Germany (DE)2e034345-ac69-4ed8-8266-e2290d415876 Poland (PL)0c6cb474-c50a-407d-bdd8-7ceb19763ad5 Sweden (SE)2d2833d1-a110-4c1d-8f50-c9893d52e736 Germany (DE)c82ad2c3-f14b-4d68-8b20-9d8e2366b8a5 France (FR)b170c593-db9c-4e08-a9ba-41a71a24ca03 Netherlands (NL)638cccd1-810b-480e-9886-78dfc6d7c333 Spain (ES)fb7cd8d4-c343-45af-a6b4-c37e3f85585e Netherlands (NL)ff541252-0325-4734-955b-630a690a053d Bulgaria (BG)e05a9fa1-1297-44ed-8e6b-72d556defa55 Sweden (SE)191bf99a-6193-4124-99c5-db1c281d4e3d Poland (PL)58371b36-a778-4817-b9ca-4f8b42bbc516 France (FR)22dc3bb0-090d-41d0-9027-c23085688625 Norway (NO)a926e7b1-bd09-4c30-89a0-ff1962ef4325 Finland (FI)82200646-bc7f-4dc3-a52b-aac649a9d008 Netherlands (NL)e682dd60-feee-45ed-9233-0035d9bd145c Germany (DE)14e54362-1193-4281-a740-b2bf446faf41 Denmark (DK)0b648ecd-95bf-4bc0-bf88-525b258e96c4 Germany (DE)ab2c4e17-1358-471f-b9c0-febe9be88731 Croatia (HR)43e6cd2c-a63f-4374-8e95-a0cf137bab6e Czech Republic (CZ)d4b57ea0-cf79-4670-9404-9af0e36832fc Poland (PL)e9134eed-e26d-4c09-8bd6-b74d5013184f Netherlands (NL)0296f209-3e4f-4104-a06a-47dcb425a87e Netherlands (NL)86dbb277-8032-4d4d-b348-98ddd18d920d Estonia (EE)a2f1f056-6fff-4ba1-88df-47543602eb5e Greece (GR)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3640567
- E-Number (Sweden)
- 3182035
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT2NE4160EFF000XXX
