Description

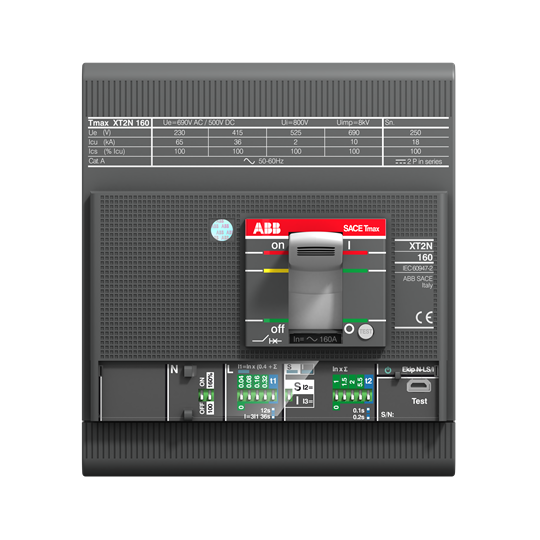

C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 100 AXT2N 160 Ekip LS/I In=100A 4p F F
ABB 1SDA067093R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1002
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 32.5..100 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 4.2 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 100 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- Ekip LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2349
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.6 kg
- Product Net Width
- 120 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1897
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 1609eb08-e8c3-49f6-a890-5962b956c26a Italy (IT)
- Simplified SCIP
- 3279b360-ceb2-40ea-b5b8-ad72e423bb05 Spain (ES)6ac6f831-68c4-4551-866e-5ed081f7a07c Netherlands (NL)4a89c54b-032f-44b5-8c8d-7d0cd35d046d France (FR)dc15b3fa-19b5-4923-89a3-4f384f029b96 Norway (NO)9c25bb52-db28-4e2a-be76-f41b92ffcb96 Finland (FI)bbeb138e-7cf5-43cb-8bbd-f9e0719d5446 Netherlands (NL)e961004c-4e95-4d96-8754-18691fa102c8 Germany (DE)a1af2075-79ed-4e69-8dec-d7d01a11d005 Denmark (DK)42f7f0f4-82fb-4da9-b6b4-dac9338df2b5 Germany (DE)70f63eea-c99f-4c68-915d-74403104364f Croatia (HR)0a736fed-59fb-4cff-b7ba-d7e241a4a7e6 Czech Republic (CZ)bc2c2cd5-113a-4784-b74f-4cf636b4422f Poland (PL)40f41cc1-1b98-417a-bb07-243fb7c3fe3f Netherlands (NL)ebb38ec1-7540-4385-afe0-3f267dc7206b Netherlands (NL)fb7779a5-51b6-4c0f-aa58-396fa1050337 Estonia (EE)221148f9-5cc5-42e4-88bf-d791d508f5c6 Greece (GR)d6c079cf-0aac-4ee2-af23-f75ebd1e4551 Portugal (PT)9536aa0e-b9f0-4044-ba23-d6dafab7e594 Bulgaria (BG)30f517d9-e24a-482d-9248-71ee1fe24992 Sweden (SE)4a15787d-6911-41b5-ba3c-dfa454f63944 Germany (DE)8c818d40-0b99-43a8-b304-fd0f4d823bb2 Poland (PL)bbad2d35-7d33-4dd1-b173-bb90a75acec2 Poland (PL)550fd77c-2475-483b-9e56-8478c5380788 Sweden (SE)4678f95a-3f6c-4fb5-a749-2dc77f54a61e Germany (DE)26238bc6-eb5c-4e9b-adf4-ff0acc6286b7 France (FR)37e16bd4-4f1f-4945-8881-a4cbedaa4ae6 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3640566
- E-Number (Sweden)
- 3182034
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT2NE4100EFF000XXX
