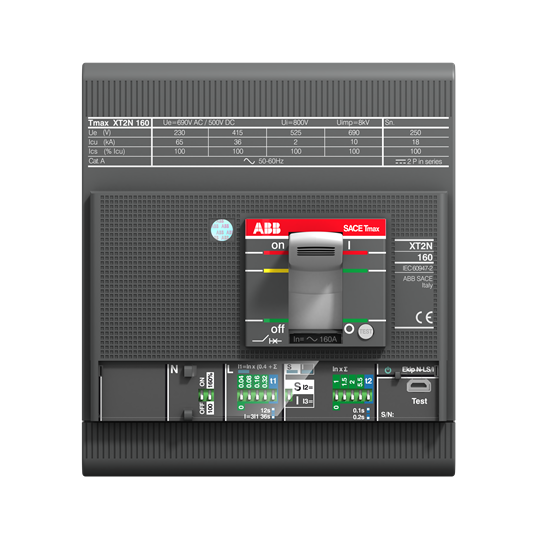

ABB 1SDA067092R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT2N 160 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 63 AXT2N 160 Ekip LS/I In=63A 4p F F
ABB 1SDA067092R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1002
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 32.5..100 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 4
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 1.7 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 63 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- Ekip LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2349
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.6 kg
- Product Net Width
- 120 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1897
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 193cb0e6-e030-42a0-ad2d-ff10b719cda4 Italy (IT)
- Simplified SCIP
- 7060552a-5193-49c5-a4eb-bd31ea418bcb France (FR)3acd3a53-d943-4cb3-8aba-2b42e0a35b4a Norway (NO)c9d7adc7-4d39-4e20-92c0-6843ebecbc15 Finland (FI)c4f0e55e-0497-4bea-8648-597bd73874dd Netherlands (NL)3d7aeb4e-e9a4-4f85-82b9-6281e4ef2dd9 Germany (DE)ee0b8aa6-1b80-4f33-86c3-53816476204e Denmark (DK)837b54d8-b995-4af0-bfee-5d1fdb20dec8 Germany (DE)5466991d-c095-4ff0-8d2d-3e5fa9f971c6 Croatia (HR)538c4ddb-0205-428a-b1f0-08c89ee475e2 Czech Republic (CZ)0f6484f3-a618-4725-a607-537e7c4ad4f2 Poland (PL)1d576ec6-dc7b-4e98-8b23-acf26cc56c63 Netherlands (NL)b1150a44-2c56-4354-95e2-2db72ba1b807 Netherlands (NL)ce9307a7-ac51-41db-8024-5d718dfb319e Estonia (EE)7006e41b-9eda-48f5-a7d9-e77aa3302545 Greece (GR)a26b7f79-e22a-44c3-b626-3f994ab84b99 Portugal (PT)7392be7c-3179-4244-8a38-020c84334b8e Bulgaria (BG)7219c845-9cea-4d75-b82b-89a10dfe14c3 Sweden (SE)cbd49345-af82-487f-a29a-1f1e45d9fbe2 Poland (PL)06b7acb9-78a5-4b38-ad24-cbbe13f0af2a Sweden (SE)3f9a273a-07a8-4d72-9d15-938c92f03c56 Germany (DE)148335a3-3988-47c4-8b46-b46b91c8db35 Germany (DE)39f587b0-d8c7-4290-b3a7-58d6400c16a3 France (FR)b8224106-ddd6-4fdc-9203-88263002ac81 Netherlands (NL)b32d6fac-56d5-42b3-a3ac-56a89b8c98cb Spain (ES)707db0e9-bf34-4014-b222-ace60ac70a0f Netherlands (NL)efc93761-fea3-4c4a-b1ad-cbcf4e281f01 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3640569
- E-Number (Sweden)
- 3182033
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT2NE4063EFF000XXX
