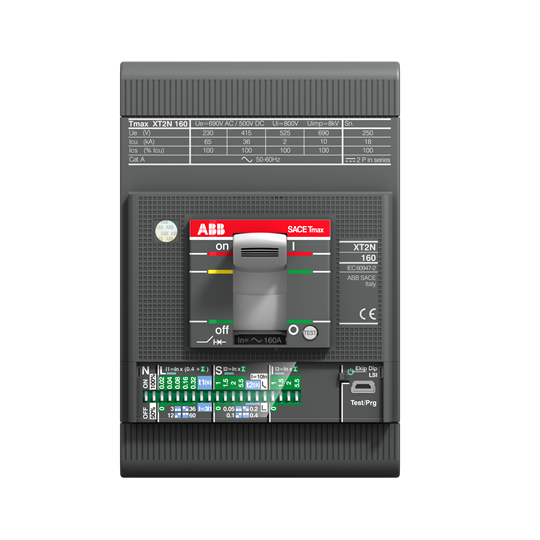

ABB 1SDA067058R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 160 AXT2N 160 Ekip LS/I In=160A 3p F F
ABB 1SDA067058R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- Brand / Label
- ABB
- CAD Dimensional Drawing
- 1SDH002230A1001
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 32.5..100 mm²
- Current Type
- AC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 10.8 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 160 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- Ekip LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2349
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 90 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1897
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b90612d8-2735-48c0-a56d-dc45be673814 Italy (IT)
- Simplified SCIP
- f169be50-7e04-4524-ab8e-7ce1763b47b9 France (FR)ad6d175f-75d5-4039-b30b-6180d39af189 Norway (NO)32f4ada9-55a6-4949-bb23-bbaf1b1ddd00 Finland (FI)639d2250-1084-4545-9b47-11f4136ba1de Netherlands (NL)5d932a2c-9f30-4e07-af0d-e9c67e6fbae8 Germany (DE)da1187e6-35c6-4fcf-98f5-45b8b5524dee Denmark (DK)d52e6c34-7d2f-417c-adcd-298010509da7 Germany (DE)fef67e1e-b863-4d26-8eda-30b19f23c531 Netherlands (NL)eacfccbb-a82d-4fac-bd44-f90b918e6b2f Spain (ES)378fd1f0-ddca-4b7b-812e-066cfa35bc3b Netherlands (NL)75555083-4fe1-495b-aa08-52ad3b730e2f Germany (DE)2a8dc798-9ad8-4510-8e26-c7eb48a964e9 Poland (PL)b08cf1d0-f1be-4019-956a-2f6676f2f0bb Croatia (HR)7aef0e65-8b0f-440a-92b4-e47d31bdb3df Czech Republic (CZ)0b7af615-fe02-435b-b2e5-ac5781d752ab Poland (PL)b9ee9955-ee43-4015-99a5-02af016b3924 Netherlands (NL)c0de57ed-ce97-45a9-9eb5-9e93d59bf892 Netherlands (NL)781f0e8d-1411-44b0-a834-5ebc37831338 Estonia (EE)8296011d-d5f0-4f2d-8fbc-93eb75957b38 Greece (GR)b0bc9672-0156-4859-94ec-587cd5d95f50 Portugal (PT)3dc9bc4b-1e87-4ae9-967b-958d8fae4481 Bulgaria (BG)48b1023d-77c4-4afd-a4fc-7e4e3da8817d Sweden (SE)7b86cf23-28b1-4ecc-af6e-5fd68920903c Poland (PL)38658003-4bce-41db-918e-b155d51dd413 Sweden (SE)bdc04d42-017e-4f67-871a-3cadf5ac1440 Germany (DE)44da1b16-8c2b-4c4e-a9c1-9553a48028de France (FR)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3638188
- E-Number (Sweden)
- 3182027
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- XT2NE3160EFF000XXX
