ABB 1SDA067020R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

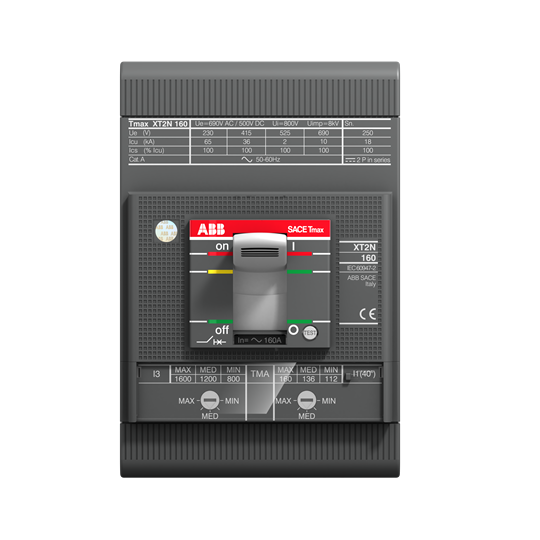

C.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 160 I3=800...1600 AXT2N 160 TMA 160-1600 3p F F
ABB 1SDA067020R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH002230A1001
- Circuit Breaker Type to be Associated
- Power Distribution
- Connecting Capacity Main Circuit
- Busbar 32.5..100 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour8000 cycle
- Mechanical Durability
- 240 cycles per hour25000 cycle
- Number of Poles
- 3
- Opening Time
- CB with SOR 15 msCB with UVR 15 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 16.15 W
- Product Main Type
- SACE Tmax XT
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 160 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Instantaneous Short-Circuit Current Setting (Ii)
- 800…1600 A
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC500 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 3 Poles in Series 36 kA
- Rated Uninterrupted Current (Iu)
- 160 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M6
- Release
- TMA
- Release Type
- TM
- RoHS Date
- null
- Setting Range
- 112...160 A
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- XT2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 6 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 58.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2348
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4927 >> Molded case circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 130 mm
- Product Net Weight
- 1.4 kg
- Product Net Width
- 90 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1891
Environmental
- Environmental Information
- 9AKK107991A8215 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- d519e276-d4b0-4b42-8a55-c1a563681fc8 Italy (IT)
- Simplified SCIP
- a2e7e927-2395-4bdc-be8d-810d0cb0ae45 Portugal (PT)e89088df-21ed-4d26-b95c-a0480b45024d Bulgaria (BG)e5f2f46a-2fd6-4c7e-bb25-a46cf48987e3 France (FR)6e917ee4-4216-40f5-a8a3-e310dc60dc70 Norway (NO)e5692b23-c0ac-4f4c-8b6c-d1ade35c30c2 Finland (FI)45c61df3-6641-4084-81a3-7d93bafd3854 Netherlands (NL)911050ef-ac90-4e21-b4b9-a662112db80f Spain (ES)24003ffc-e1a5-47bb-a8b8-451202db8f05 Netherlands (NL)eda1b4f0-a70f-4d5d-9cd4-b12af82bd479 Poland (PL)6a135342-7f65-41e7-bf92-aafb3e7dba8f Sweden (SE)e90f788c-8237-4208-bcbb-b57b6e8c6f34 Poland (PL)6bde395d-b3ce-4547-bfe6-9d0f2acce853 Sweden (SE)7baa1ff8-47fc-47fa-9a52-115afb224150 Germany (DE)21953dfb-88b7-46f1-aef2-9ca2ee14f1ce Germany (DE)80fdd440-e1f4-40c8-84f2-ebdf68d25284 France (FR)7e70c592-6fe7-42ff-b672-c12bef9daa96 Netherlands (NL)ca62c6c8-a70f-4cc1-aaa4-dca46695e677 Germany (DE)cbc6c65f-2667-4430-9264-3c5c6ef91dd8 Denmark (DK)b8480e5f-7d16-408a-8c42-d667687e8b3c Germany (DE)d5a93a62-0ed3-46a8-bbb0-0a366c1f5015 Croatia (HR)49681ffe-e667-4540-8372-39afd4cfc136 Czech Republic (CZ)86caf239-3aec-4c05-be83-437f0192df0c Poland (PL)c2be7ce5-f3a1-4875-a255-24d9e26372b6 Netherlands (NL)c4510edb-e303-4d7c-a5e9-ec2994672c7b Netherlands (NL)08c21b77-eaa8-4840-ad41-8c49aec664ef Estonia (EE)aeaa3db2-98c3-4a85-998b-8b9815801ce8 Greece (GR)
