ABB 1SDA065729R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

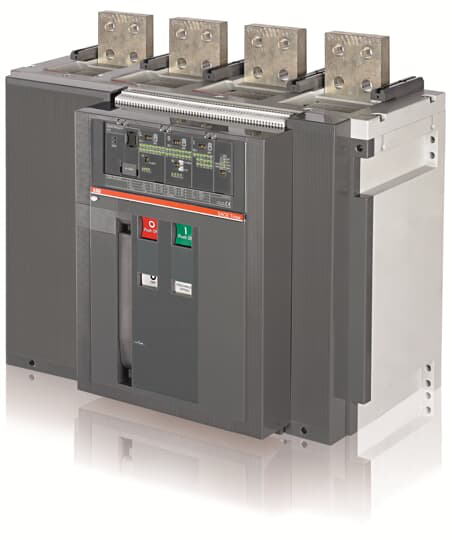

C.BREAKER TMAX T8L 2000 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR331/P-LSI R 2000T8L 2000 PR331/P LSI In=2000A 4p F F
ABB 1SDA065729R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 4500 cycle20 cycles per hour
- Mechanical Durability
- 15000 cycle60 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 46 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 2000 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 65 kA(690 V AC) 50 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 40 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 65 kA(690 V AC) 50 kA
- Rated Uninterrupted Current (Iu)
- 2000 A
- Release
- PR232/P-LSI
- Release Type
- EL
- Short-Circuit Performance Level
- L
- Standards
- IEC
- Sub-type
- T8
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4934 >> 4 Pole Non-Interchangeable Trip Electronic Circuit Breakers
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 282 mm
- Product Net Height
- 382 mm
- Product Net Weight
- 87 kg
- Product Net Width
- 553 mm
Environmental
- Environmental Information
- 9AKK107046A3003 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- T8LFD4GC000000XX
