ABB 1SDA064776R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

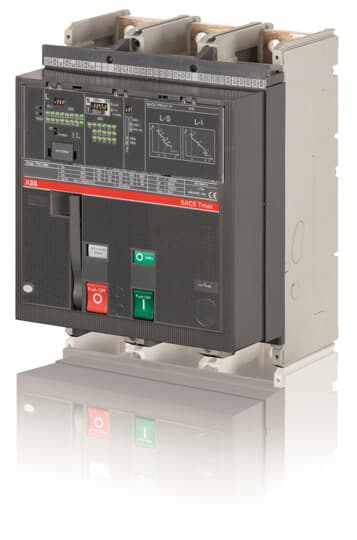

C.BREAKER TMAX T7S 1000 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000T7S 1000 UL PR231/P LS/I In1000A 3p FF M
ABB 1SDA064776R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 30 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- CB
- Rated Current (In)
- Main Circuit 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 600 V AC
- Rated Uninterrupted Current (Iu)
- 1000 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- UL
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Classifications
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 EAN
- 8015644676711
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 11 kg
- Product Net Width
- 210 mm
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
Technical UL/CSA
- Interrupting Rating acc. to UL489
- (240 V AC) 65 kA(480 V AC) 50 kA(600 V AC) 25 kA
