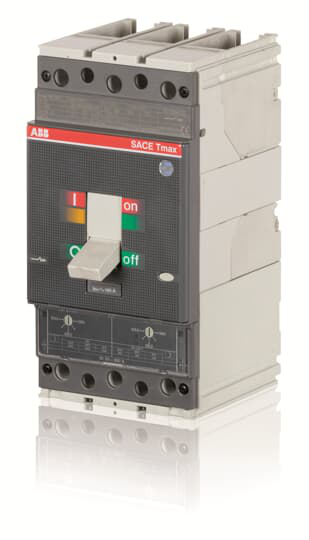

ABB 1SDA063415R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND THERMOMAGNETIC RELEASE TMD R 160-1600 AT4V 250 TMA 160-1600 3p F FC 1150V AC
ABB 1SDA063415R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 7.4 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 160 A
- Rated Operational Voltage
- 1150 V AC1000 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (1000 V AC) 12 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (415 V AC) 200 kA(1000 V AC) 20 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Release
- TMA
- Release Type
- TM
- Short-Circuit Performance Level
- V
- Standards
- IEC
- Sub-type
- T4
- Terminal Connection Type
- Fixed Circuit-BreakersFront for Copper Cables
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 2.35 kg
- Product Net Width
- 105 mm
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- ee7d7399-c9c7-4af4-9973-99d1bcbd3c72 Italy (IT)
- Simplified SCIP
- b27dc842-acdf-408b-b930-51b0245c8863 France (FR)0c96473e-981c-4574-9e77-e2668d0bdc3f Netherlands (NL)f0ec9bae-e331-460a-bea1-96b80df18949 Spain (ES)e1e6a134-2bad-4caa-a564-1971c6274d18 Netherlands (NL)cb4fe2d3-66d9-4fa7-abfd-1ea897375872 Poland (PL)7d62b552-8338-4c95-9acc-9529bb6da742 Norway (NO)93ab74c0-cdf4-4fcf-8d6f-d5fa8b457ad6 Finland (FI)04e054fe-fafe-4c85-86b7-d3bd04f5e248 Netherlands (NL)be3d1c1e-4508-46c6-8267-9a53993b7eaf Netherlands (NL)a768e7e0-6c5e-4d41-9589-beb969e20e77 Estonia (EE)9d1bda2c-0489-40ad-959d-936688342d57 Greece (GR)a2db3d83-07b2-4af3-9bb8-7e93265a6e07 Portugal (PT)ce4c37d4-8536-4811-bd07-e908b819c146 Bulgaria (BG)fc1684b9-c24e-45ca-8164-bd0bcd7eb313 Sweden (SE)4e7f1b61-3dd5-40e5-8b97-fb39a0790480 Poland (PL)d0690f4d-4852-44a0-8e75-859e057e10e4 France (FR)7028dd79-d606-4f8b-9856-b38aea65fe98 Sweden (SE)5e55bfa1-d0e5-42b0-835c-0c5f0b4d72f4 Germany (DE)35e7f2f3-f6f3-4e06-8790-f5de429732ea Germany (DE)6df2bb81-913b-46e2-83ea-e098e67b813f Germany (DE)9e5c3be5-13ad-4901-bf58-cc52ccc4ad45 Denmark (DK)422deda8-89fd-4d61-8442-5343c9908a8d Germany (DE)8035acb1-98b5-4c89-b2fd-a78368d185bb Croatia (HR)14508eee-f636-4fff-b6dc-a9333d0b93dc Czech Republic (CZ)696fee27-fe6f-41de-bcbc-82e50122291c Poland (PL)dd671326-3c5d-4115-930c-77cff342a839 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85352100
- Minimum Order Quantity
- 1 piece
