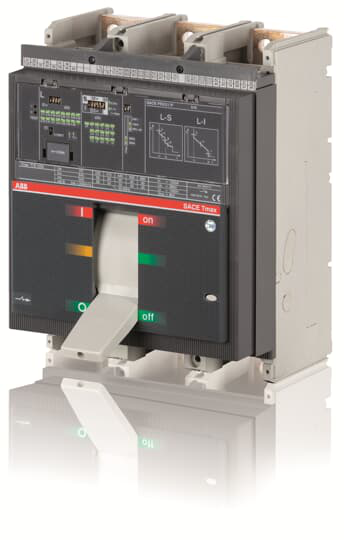

ABB 1SDA063026R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7H 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1600T7H 1600 PR231/P LS/I In=1600A 3p F F
ABB 1SDA063026R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 77 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 31.5 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 12.5 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 1ab38a42-13d1-4e55-8b44-fbad38f730cf Italy (IT)
- Simplified SCIP
- bcd66512-e4ea-496c-a761-8b4c8cd8d03a France (FR)74fceb24-dce1-4b16-8711-873c045a1296 Germany (DE)b517b7e5-08ce-47b5-aff8-032635bfa777 Germany (DE)736cacd3-56f3-4c74-a01f-05ce0ca277d6 Netherlands (NL)8b8ea5e3-1557-425d-924e-9bc3367ee0ab Spain (ES)755ad3d8-ea91-4ab5-a7e6-55ae99e138d0 Netherlands (NL)efb5e117-76fb-43a2-9110-11264d5e00e9 Greece (GR)01b7ec41-715b-4530-9c5a-a8e99d073030 Estonia (EE)de7f1414-49fd-46ec-a2aa-54d581e52392 Czech Republic (CZ)6c4b83fd-f06c-40b6-8da4-ab87a5a4ceb9 Netherlands (NL)18afb721-8eac-4fa4-b859-f5ecda3f42de Netherlands (NL)92e70dcf-16ed-4395-a919-3655b8992884 Poland (PL)6366eb71-8846-4607-a86e-7e93d0ac95ec Netherlands (NL)d6a0dcd7-54aa-483a-ba77-c8f4d9d6c5d0 Finland (FI)d1ef05c5-57ae-4730-823c-71c700be042a Croatia (HR)3171f5b8-2d66-4b4e-9f7d-d311bbd8b4e9 Germany (DE)ea6bfb22-4f36-42e8-a4eb-8f7880445a18 Denmark (DK)5ffe73ed-f879-4bd7-ba05-bf6be5a3e6ea Germany (DE)c32f72f0-e66e-4d33-88ac-7bf3d18a4898 Norway (NO)821536dc-9fad-4a5a-a86e-5f9b4ca89f04 Poland (PL)6caa0e2a-745e-4b96-ba65-5f2c1b16314d Sweden (SE)3203499f-dc66-4373-a027-b1ecf13200d2 Bulgaria (BG)d95c4ea1-3e5a-4bea-a213-7cb71e0828f5 Portugal (PT)d2ac8b29-ad9e-492d-a8cb-ba96bf9c8091 Poland (PL)5f26fe21-0bee-425a-bcab-37703e5ed832 Sweden (SE)c3170dc9-2a07-4012-a105-29c506339bd5 France (FR)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
