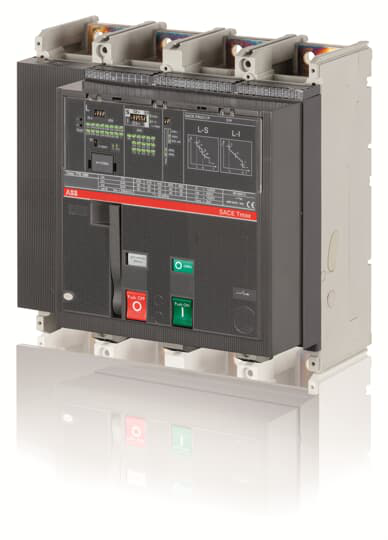

ABB 1SDA063018R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1600T7S 1600 PR231/P LS/I In=1600A 4p F F M
ABB 1SDA063018R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 77 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 14 kg
- Product Net Width
- 280 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 8a295c08-914b-493e-9407-cb6146f6311a Italy (IT)
- Simplified SCIP
- 231ea45e-cbc3-4126-9904-f22dc14ff193 Sweden (SE)8922e2f5-0a7d-4492-b157-783e67c2f5e2 Poland (PL)c7fdf466-dfe3-40a2-8b41-8a7c86b6af07 France (FR)0ad0d187-9ace-4253-9e12-710b79cc6382 Sweden (SE)970934c3-7c79-4f31-b102-89d447905a0c Germany (DE)2552dfec-5c8b-43a5-9295-e4a168add46c Germany (DE)c3d706d8-684e-4e44-9218-37ecbe2a30c3 France (FR)bb1394c0-62ef-42df-9e3a-b0a1052d2a5a Netherlands (NL)5d66a9f4-d995-4cde-abd5-ed5b9ffa2984 Spain (ES)66fd673a-1468-4fe6-900e-3adef86aaf7f Netherlands (NL)0897d4d8-75c7-4169-a508-32b5fb5332c0 Poland (PL)dc12d05b-2f5b-4094-9241-bc1600c44a16 Norway (NO)77ac99e4-c002-43a2-ac99-d92842090015 Finland (FI)7456d664-51d1-4f3b-8aa5-bde5abd0329d Netherlands (NL)cd07d30e-244a-4a0a-8740-3e4c1b1d35f1 Germany (DE)dd2adcb9-9b4d-43af-b1a8-2f1496eb6b69 Denmark (DK)b30261be-b0cc-43c9-ba99-2104d87b8253 Germany (DE)4f6be5cb-50e2-48ff-8bb8-06b6ad12739a Croatia (HR)04cd5302-f62e-455e-8244-4c009d22a8a4 Czech Republic (CZ)60cdbc42-ab18-4786-9f54-75eceb1f0ee6 Poland (PL)a04a6355-5d15-4ea9-aee3-5247b433b4fe Netherlands (NL)1216c418-0437-486d-bbe6-1352abfa94b2 Netherlands (NL)fc1efab2-b692-43c4-91a5-71aa40eb3739 Estonia (EE)e70f5b0e-6d21-4c24-a0e5-8588b9c6499d Greece (GR)9f8ee9f0-4740-46f3-9406-64d357de2e15 Portugal (PT)f2d2a2ce-d847-4398-b262-eb2e657e0266 Bulgaria (BG)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
