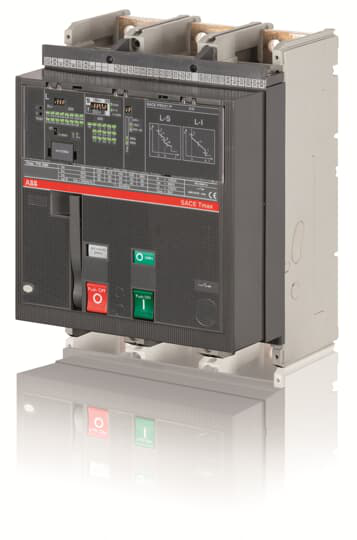

ABB 1SDA063010R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1600T7S 1600 PR231/P LS/I In=1600A 3p F F M
ABB 1SDA063010R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 77 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 14.481 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 488a5172-8d1a-4663-bc07-90b399071309 Italy (IT)
- Simplified SCIP
- 540373bf-4f51-4757-81e4-5774e81efc97 Norway (NO)cb327c4a-b912-4646-8752-47e5908b938d Finland (FI)75342d0a-2743-4a33-9703-94a2d5072839 Spain (ES)13d3d07d-bb52-4e8d-a581-ad4d76bd0e49 Netherlands (NL)5ca4efe5-49b0-42c8-8ab6-60fc851a0665 Germany (DE)0ff4616e-67ba-40a3-bb84-aea4bbb69b93 Sweden (SE)30304210-9b47-4c19-989f-2585ca7580d4 France (FR)76ca9f7d-3666-4afd-8303-723729ab6c55 Germany (DE)de90cd90-6fa1-4c1b-b056-dd5f9429e421 Netherlands (NL)af8197ea-60fb-4775-92bf-0075b654a003 France (FR)d74bb24e-d16b-45cf-8640-d8e7690a5667 Estonia (EE)8dbca767-3eec-402d-bf77-d7717099e5e4 Greece (GR)12914a44-430c-49fe-be67-358fdbba3937 Bulgaria (BG)704b7a47-260b-4b5d-9a8c-123362044e70 Portugal (PT)66421bab-715b-4a08-85b4-481f43bb48a3 Sweden (SE)25d7f573-6c44-423c-9bef-8fda055f8fc4 Poland (PL)1655ec0e-733e-4d50-a00e-16f57bbbcfa7 Netherlands (NL)5513df25-e182-438e-9012-e55e65a424b2 Netherlands (NL)7fd9c111-3caa-46fd-943e-25185b7ab732 Czech Republic (CZ)f383b0ab-ec08-4465-9a2b-44e744d8b7e7 Croatia (HR)b8d81a71-200d-441a-a594-a2940f7c798e Poland (PL)6433c27f-0213-4fc5-a922-ba7cd0ac1023 Germany (DE)4a581c2b-d7d0-46dd-ac87-5cfe9382d89d Germany (DE)252a70a4-a4d4-470f-a706-64a6b0faf1ef Netherlands (NL)7ab9818c-c7b7-41d6-a19f-452e26bb8ba2 Denmark (DK)df5a2365-95e7-443b-a27a-1ce414c2a1ab Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
