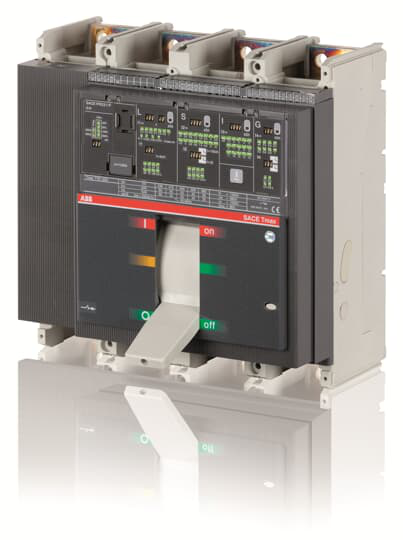

ABB 1SDA063004R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1600 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR331/P-LSIG R 1600T7S 1600 PR331/P LSIG In=1600A 4p F F
ABB 1SDA063004R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 77 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Release
- PR331/P LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 17.737 kg
- Product Net Width
- 280 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 17a3b28d-9bb2-4b0e-8379-120a0807fb7c Italy (IT)
- Simplified SCIP
- 1d7e49d2-521e-43c3-a8fa-07fe13981546 Poland (PL)e39d1600-8a28-4a08-9523-104ed6b04be0 Norway (NO)1b98cd05-0461-470f-b757-12dfea5afea4 Netherlands (NL)fac78540-c403-422c-83e3-b97e79631341 Poland (PL)1bc0b4e1-536b-4d2f-a259-a5c5b830cd90 France (FR)2960d033-9545-4d4d-b676-c8d4224f3a2c Sweden (SE)10fa285d-7ffc-41d6-a0da-25c3362c2957 Germany (DE)8f43c049-5ac7-454b-bf33-85e867fbe321 Germany (DE)f7cffda4-0d38-45d7-a6c4-49516f3e88d6 France (FR)a30b9b17-1b04-4d78-8bc3-acfbfb1f883f Netherlands (NL)01bc387a-95be-4ce8-8803-6729c5bfcd08 Spain (ES)fb482673-2dec-48fb-88d2-677032fafebc Estonia (EE)8ab9390e-ea8e-4f1e-bc72-23a61c9a49ec Greece (GR)0e09a96e-10a6-4dc8-8c3e-6972837a88a7 Portugal (PT)c735aef0-ff77-4417-aca1-b2143348d9d3 Bulgaria (BG)a762645f-9185-4d8b-b264-a1c176b6737c Sweden (SE)206d4ef7-328a-45b9-b503-30e86ed61616 Netherlands (NL)14377f91-f709-4c92-ad9c-94ae89abd609 Netherlands (NL)4d98ecb6-52d2-4134-adcd-e3050aee523e Czech Republic (CZ)505658cc-baba-4232-a6cd-eaf59636b1eb Croatia (HR)3d9e3231-1ac9-4989-859a-b5bf5cdedcce Poland (PL)51e6d3a4-e034-421f-9f34-a43ac158d111 Germany (DE)d4508bf4-281f-4ee3-90c0-a8f2f502c7a4 Germany (DE)21f77668-88ae-45e6-86f4-081a22e15837 Finland (FI)77fa5cf6-7d97-4e0c-9001-9b4f3969fc7a Netherlands (NL)cddd1588-70d0-4aed-bc29-3ce5a26d354e Denmark (DK)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
