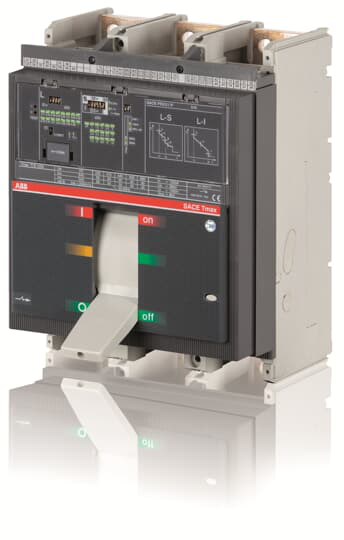

ABB 1SDA062898R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7H 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1250T7H 1250 PR231/P LS/I In=1250A 3p F F
ABB 1SDA062898R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 47 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 31.5 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 13.646 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- d750faed-a89a-49bf-96ee-dfb011bddea9 Italy (IT)
- Simplified SCIP
- 85959031-1cc5-4049-b584-a6ae12d4e6c5 Finland (FI)7385122e-389d-4975-81b8-c75204993c26 Germany (DE)541aa1ac-c8ad-4e6c-a67f-c96b776f567e Croatia (HR)da32757a-6a4e-4086-b0ac-51fe52d0cc3e Poland (PL)4a759d4b-d064-4ca6-947b-ef328935004a Netherlands (NL)511d2a85-5ebb-43ec-a06c-0f6298255bce Germany (DE)d6198762-d762-424d-baa8-8652b918c417 Denmark (DK)bcf92c1c-1f2a-48e0-a7e3-e8c717c488b0 Czech Republic (CZ)0b455a91-644f-4b93-84e6-d618870dde8a Poland (PL)3be4c5bd-4a16-4f58-8f8e-a33b67f53a2e Netherlands (NL)b7df56d1-4ea2-44b1-bab6-78a644bd84c3 Poland (PL)5ce812ca-8850-474c-a080-81cecd0faad3 France (FR)d250f0d8-d3d0-4c8b-8b44-d0eb373861ff Sweden (SE)7f3e7da2-505f-4543-a536-df2c93483e68 Germany (DE)8170b4a6-8f44-49ea-b091-1d772c17656e Germany (DE)711ce684-9cbe-4ba8-a49f-d2bbbe5e535c France (FR)aa3a0599-007c-4724-9bb2-a205c5cce08e Netherlands (NL)55bc1a2a-b4b3-452f-82ad-ab125911930c Spain (ES)47ccf5b0-185d-4491-b9ea-3ebf70214008 Greece (GR)2af9419d-ab87-4a36-bcfa-a88c4b41765c Portugal (PT)fb229321-2af3-4e64-8407-af18b3b3f59e Bulgaria (BG)ae0cfc95-8492-46dd-b2a9-d5b93834e896 Sweden (SE)6d259bb2-83c5-4a51-b6c5-413986630154 Estonia (EE)67dad770-37a6-4938-9c6a-f7cd81cb06c4 Netherlands (NL)ec01bd85-2c6d-41dd-b368-8115b1dcb835 Netherlands (NL)5486bad2-1ec8-48d1-8a0d-b6ca9e17bb43 Norway (NO)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
