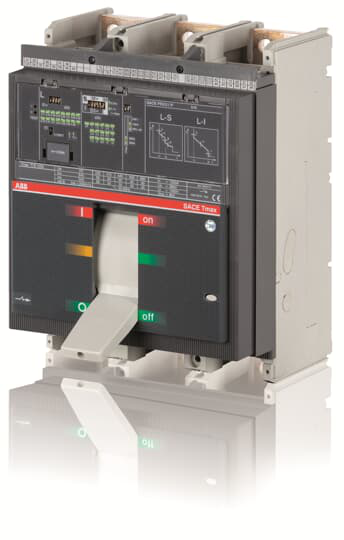

ABB 1SDA062897R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7H 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-I R 1250T7H 1250 PR231/P I In=1250A 3p F F
ABB 1SDA062897R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 47 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 31.5 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Release
- PR231/P-I
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 9.7 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 3e621310-1d40-4b47-a236-cae335d0f7ec Italy (IT)
- Simplified SCIP
- 6a03fcf6-796c-48b6-b9b8-7781e4c585e5 Finland (FI)24ba81c5-8c8a-4e1f-900b-c5d2dcef2caf Germany (DE)2ed42847-fd9d-428f-bc7b-5b3c95b3ae48 Denmark (DK)0fffdfcd-61d3-4b03-9369-066a61f895a5 Poland (PL)a2ff2cdd-f7f4-41a1-bb36-8a1c0213366b Croatia (HR)5f4834eb-c6d4-46ff-a91d-8667b084336d Netherlands (NL)f3114e18-d398-46a2-a9ee-eb9c7382facd Estonia (EE)c7a4451f-abd3-45a5-b027-dd2b525e85c5 Greece (GR)82fbe619-40a5-428a-bf8f-c13775be773d Portugal (PT)c80c29a9-cf45-4e1b-be4a-750c129743bb Bulgaria (BG)fc10d938-42c0-42d1-8cbc-f68b669da735 Sweden (SE)b1b7aa98-3766-456e-a090-d485792035f0 Poland (PL)2015413c-9bde-4fe3-9b47-0da1a1c5b2a7 France (FR)e8d11605-1a73-4361-8270-23ff5a825a35 Sweden (SE)1be8f87b-3d92-4a68-8e5c-7332f192e2e8 Germany (DE)427de604-9a19-4d3c-a326-d7c43a7f1ba7 Germany (DE)f9ca64dd-db11-4742-aa0e-f6554636588b Netherlands (NL)11ec261f-72bc-4aa0-b335-930cf1cb049d France (FR)c54bd71e-48f5-468b-bc98-80923ca3bbd4 Netherlands (NL)af0c6999-30b5-4dce-9918-dcc34669bbae Spain (ES)434103ea-511e-409d-aa75-6699ff911202 Netherlands (NL)3f1065e1-341c-4f90-a7d4-23b5678ed989 Norway (NO)c9657c99-fbe0-4326-9e99-18d41a8d21a6 Germany (DE)7b93c30a-34a1-457a-ba53-f6835a4bec9f Czech Republic (CZ)dc8fc7ae-40b2-4f66-967b-75e059774b1b Netherlands (NL)c062c857-aa53-4cc4-86b7-3fb908a007b3 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
