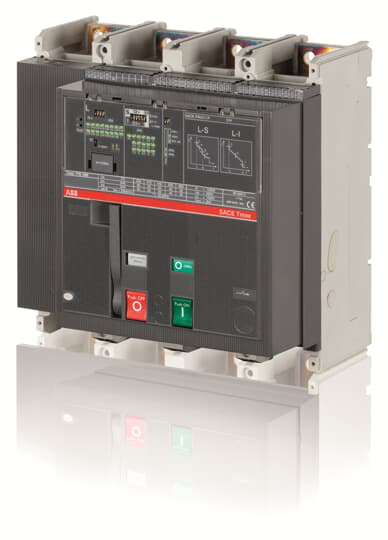

ABB 1SDA062890R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1250 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1250T7S 1250 PR231/P LS/I In=1250A 4p F F M
ABB 1SDA062890R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 47 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- RoHS Date
- null
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 14 kg
- Product Net Width
- 280 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 53a3fbc2-558b-4edf-89b9-0ad046aa3502 Italy (IT)
- Simplified SCIP
- 4287c27a-b8bd-4e9c-a534-88b0784eb10b Finland (FI)16598b54-e701-4cff-8515-1ff59dd7f2dc Portugal (PT)3c78605a-0d63-4f6f-9d22-98f5d7f9becf Netherlands (NL)eb60cbe6-0cfd-41eb-b94c-dd937860353b Sweden (SE)f502b0d8-00ce-4d1c-945d-435a26d19469 France (FR)526534f6-dc35-43f1-b52a-bcf3aed8ba1a Netherlands (NL)e730dad5-20e5-477e-8c6e-a1e704342bf0 Spain (ES)153d6dd3-00e6-42e8-83f4-69a134131cec Netherlands (NL)4fe16570-ce47-4e84-b7e3-40b5f2e691eb Poland (PL)85b70c60-31ad-4300-a5d4-4e54b5649b67 Germany (DE)2313dd54-b5ed-4115-92e4-5c37662e4bb9 Norway (NO)585d6b2b-def4-439d-9eda-fe7c14b839b0 Netherlands (NL)cccc40d4-e34a-4433-a2c1-0501935d0811 Germany (DE)f20078a3-9ea0-45a6-8238-eebae4fdb7d9 Croatia (HR)8b2e51b5-e2ea-4df6-879b-c16eaa725c1b Estonia (EE)b2134c72-cb83-442d-9962-b58e1f4607f8 Greece (GR)f1e5f7bc-db5a-493b-91e3-1553193dd817 Poland (PL)9146630f-86e6-4fee-a157-ac26772ca93c Germany (DE)a190771c-7b97-432f-a608-d7d882d20779 Germany (DE)575b0597-81fc-45d5-8a1e-40ba48f0373d Denmark (DK)71733606-1e50-48d9-931a-1781c430c988 Czech Republic (CZ)6182a43f-3dc3-4a88-89c3-89100046c2b1 Poland (PL)3ee88376-b8ec-4718-a808-8d53f9c1ca8f Netherlands (NL)4079b6e9-02d7-457f-b43f-15cf423e3f3f Bulgaria (BG)1846d594-0071-4285-b808-a8c3d616ed71 Sweden (SE)55db04a9-801f-4cf4-a297-91aa9232d2db France (FR)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
