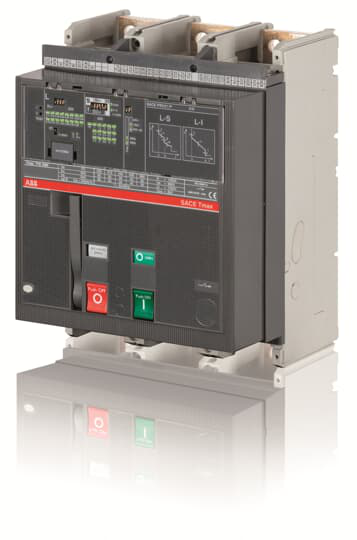

ABB 1SDA062882R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1250T7S 1250 PR231/P LS/I In=1250A 3p F F M
ABB 1SDA062882R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 47 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 14.758 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- d3222cc5-ce34-4efc-947d-811cf2811895 Italy (IT)
- Simplified SCIP
- c40d6810-e866-474b-b66c-01e79e025beb Denmark (DK)2c4611f4-a81c-44f8-8442-196d1c150156 Czech Republic (CZ)8558fe70-0082-4fc8-8c53-c6c5f0c9444c Bulgaria (BG)a6cff365-70b9-41df-b5f8-c516a21cb36c Germany (DE)2e85d923-20c1-44e7-bda7-f0a801779e70 Netherlands (NL)0b6c6c22-93ec-4fca-ac58-1c0594bd4533 Estonia (EE)5d1272d7-b340-4f10-bcb9-4a85a5c654a2 Greece (GR)9f49a4d5-5667-4055-85c9-05adc6e41490 Netherlands (NL)c3695c60-e356-4c61-9d5b-20693d2df441 Finland (FI)1749f038-afd8-4f52-8206-3f8922903584 Portugal (PT)827b6de4-8115-4330-9025-3eeada2fc030 Norway (NO)57afdd08-a9af-4b02-b0c2-5fe879ca3267 Germany (DE)7b1d6184-4982-4b0a-9d23-d2918ccf898a Croatia (HR)905a79e6-8b4f-4a1b-a564-de9fcd95f89c Poland (PL)2b49d713-511a-4bd5-9e9f-c5a878534e5d Germany (DE)5c8d2e7d-1426-451a-afc8-4e8c7c1d4182 France (FR)947e2929-8aa0-41a0-b05b-a35051fa068b Netherlands (NL)485034eb-c020-454a-bb29-68cb7b169b46 Spain (ES)079ef8de-ead9-43d5-9368-0c599d8caf3e Netherlands (NL)04aef118-c67c-4441-aa77-94c6716e80bb France (FR)00f91c11-2e5c-4218-9da1-0d69b5f83754 Sweden (SE)f76a2688-7248-4008-a3ca-87787842e286 Sweden (SE)4ba1aecf-7f61-43de-823f-192b5bbd5585 Poland (PL)50ac98a4-91a5-4f63-b8bc-a764c71c21ed Germany (DE)e9f83d16-fa10-4fd8-98ae-d221ba215bb9 Poland (PL)09624d57-07cd-4ac7-853a-33bf0929919e Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
