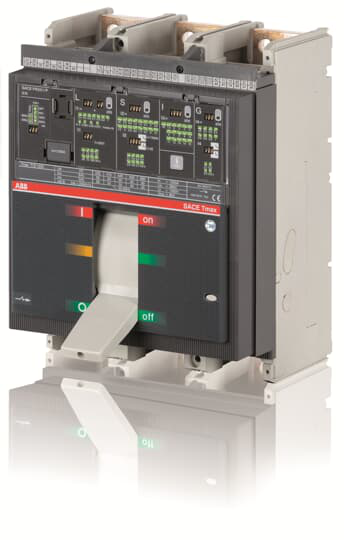

ABB 1SDA062868R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR331/P-LSIG R 1250T7S 1250 PR331/P LSIG In=1250A 3p F F
ABB 1SDA062868R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 47 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Release
- PR331/P LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 9.7 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 3d74073a-b122-4bb1-acc4-9ee41c271652 Italy (IT)
- Simplified SCIP
- 1b9df056-2d46-4708-97fc-65d774c29c1a Netherlands (NL)3452944f-e3fb-4816-bf2b-72f2e9175ccc Estonia (EE)d34df109-231c-4abc-8559-0c7e2099cdd2 Greece (GR)a0d04201-2ecd-47da-bea7-6ac2eecb87f2 Germany (DE)ad30b132-11e4-4ab0-9a37-a7f86335a77d Croatia (HR)94db9e39-c982-4e5d-8065-016405bf8a49 Portugal (PT)6e4a2674-80ee-443b-aa31-3db59e44575b Netherlands (NL)7e087e2a-cb21-4f54-b19a-7ae8575cd9da Finland (FI)f67d98a4-f044-4fe9-8b79-5efe4967713b Germany (DE)b12c793c-b2b6-48ed-b388-03790c55e5f0 Denmark (DK)09ad2c90-47d2-4dce-aacb-cf2ee8cc2e55 Czech Republic (CZ)114930ea-498c-4d68-8749-35326fb312c6 Poland (PL)bb30d2d9-63a6-4171-a52f-541196c3c386 Netherlands (NL)fe07d273-cccf-4619-8ae9-5143dd098291 Bulgaria (BG)662c3c36-3a7a-456d-a3ee-d021da8c6d79 Sweden (SE)33c74e67-b322-418a-b46a-9f8ec6daa94f Poland (PL)a02a902c-bcbc-4521-9037-ca910d41487e France (FR)2225fdd3-0f7c-436b-8a65-cb8ad023c9b8 Sweden (SE)798e2196-6e93-47e3-b5cc-8b6c4a84f390 France (FR)325f0bd9-2f6b-4a97-8d00-76b9f98b8b1f Netherlands (NL)f8b28d96-1ad1-4093-953f-82a04d0b1e04 Spain (ES)ef6e99dd-ab23-4434-999b-7e568bd3bac4 Netherlands (NL)f66517ef-180b-429e-b8d7-3c1eccd8cbd0 Poland (PL)65acfc33-6789-4100-b28a-42a062e41def Germany (DE)a8dd0949-f722-4a96-b177-c29e55a05b51 Norway (NO)a8495260-8cf2-43cf-afde-44d5d4a1c270 Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
