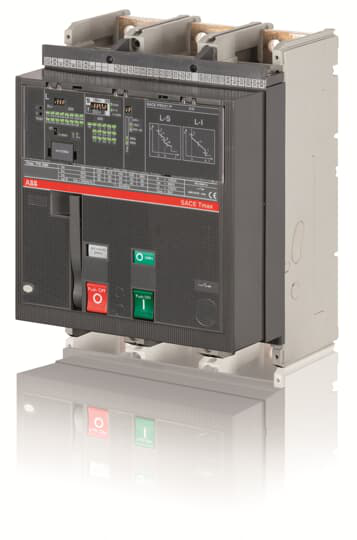

ABB 1SDA062786R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7H 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000T7H 1000 PR231/P LS/I In=1000A 3p F F M
ABB 1SDA062786R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 30 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 31.5 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 11 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- f85ecf77-9b9a-4df9-abc4-fa278a121686 Italy (IT)
- Simplified SCIP
- 485e9e18-404c-4db4-a944-f97d60bda51b Croatia (HR)cc0a8902-6825-40b9-a8a8-614e07ff0e4e Netherlands (NL)5b808c3c-675e-45df-873a-3b4dfade5293 Poland (PL)682ba419-a113-4a89-9946-bdaa88f2b898 Germany (DE)32a6e620-97bb-40e4-af7a-ff082cba8a5b Finland (FI)16ba7884-e065-4d5a-b371-82547e12ff03 Denmark (DK)8ed7df7c-f2b3-4161-b0ed-67b1aeb95fd7 Czech Republic (CZ)ab666fbc-5cc7-4291-b5a7-abd6e39b734e Germany (DE)2cbe0c6f-0ac2-4b19-ad01-4247839458dd Poland (PL)d49a9c1d-c574-40a9-8f79-9f7775c68021 Netherlands (NL)cbd0bdf5-87b7-44b5-ba46-d0a0796bc980 Sweden (SE)a6502af6-fa87-4795-8087-7162db7d6e10 France (FR)233e132c-c11d-4b4d-adbf-4166bcd0f54f Poland (PL)4921c1ce-c408-49a8-8496-31c60e853d3c Sweden (SE)3f9a0b39-fac7-4bcb-9900-a79e3a6a7b94 Bulgaria (BG)c61fb834-97a3-49fd-b15d-239c4b48d0a1 Portugal (PT)61c6f192-5a1e-4b4a-9af2-0827aea35135 Greece (GR)3613aa7a-92e6-40d4-8228-dd57a7bebf89 Estonia (EE)7b4848dd-e84d-4607-a3a1-03ba953b86d3 Germany (DE)78f4b2e4-78d6-4b87-a714-035614ba6a86 Germany (DE)d505860d-dac7-4cd2-9577-270e9b1c5f44 Netherlands (NL)d849f159-9800-4037-9577-91c2a5af7368 Norway (NO)374f63dd-39d3-47fe-a726-60f399b112a4 Netherlands (NL)91463892-a29e-42b1-af64-889d6bd71d67 France (FR)eec24d11-8da6-4e79-80d3-fdeb2b1947b5 Spain (ES)7eb1a151-defe-4e30-ab01-bf88fc4691d2 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
