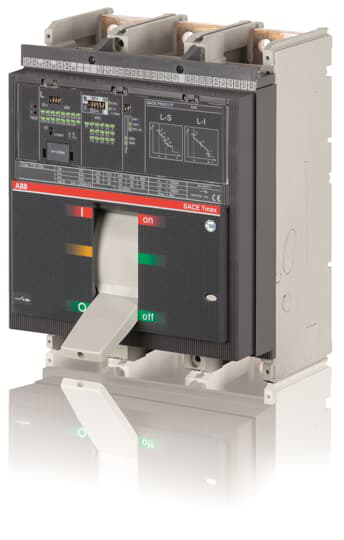

ABB 1SDA062770R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7H 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000T7H 1000 PR231/P LS/I In=1000A 3p F F
ABB 1SDA062770R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 30 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 31.5 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 13.672 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 3c3342d5-56e5-4462-b4b3-dc5d32775eb8 Italy (IT)
- Simplified SCIP
- f5cc0e5d-7758-46bb-ba68-decac4d19b1d Netherlands (NL)af9d8dbd-1d00-4542-9f65-5f9f0b0f3be8 Croatia (HR)b24e0c70-4bb2-43fa-ac9b-8b7488ca4391 Poland (PL)59c5aa4e-2bec-4cb4-8c50-cdb270d1cf49 Finland (FI)5b1a1b2c-9303-4d89-9666-33de43785e0e Germany (DE)e7eba8c0-bd46-4063-bd38-e1a5dde5f131 Denmark (DK)229fba67-62a1-43e5-bab7-30d6759fbafa Germany (DE)46748f61-b063-4ee2-b13e-438cd2500245 Czech Republic (CZ)95192baf-dae0-4249-b49b-7a6b5fe194b4 Poland (PL)664cf1bb-6cd3-4327-a345-e0ec912c9e59 Netherlands (NL)de6a283b-a7db-490b-8cc1-45821e414270 Estonia (EE)29b7225c-65b6-4099-86ee-2e33dc6609c5 Greece (GR)de3a6c0f-6498-4110-95a7-2246562ca519 Portugal (PT)ac075b92-d08b-4278-a043-837f24b1d5fe Bulgaria (BG)0705015f-04b4-4ce8-ac47-26ab78846859 Sweden (SE)8856f0e6-8c39-4720-8e6e-99ac1d93dedd Poland (PL)f8af47f6-eca9-469b-8055-6c5c64725274 France (FR)838b4300-f538-474e-9bac-696e50386e28 Sweden (SE)6cf9809d-f9ba-4cc1-afc5-8c7f8f0c6893 Germany (DE)1150fc3c-7d2f-4bcc-8e8b-792e474f5ae0 Germany (DE)8a586733-cddb-4cef-affa-23ef755fd853 France (FR)c68e69c8-4c9d-4c66-a434-13b203460a56 Norway (NO)b9b9c7f7-3681-4206-aa38-721191eeaf9b Netherlands (NL)bd20d1e1-16f0-46f0-a980-9e407c029d6f Netherlands (NL)5d6c99e5-b543-4727-86ac-025a9a429235 Spain (ES)83a11015-6bc9-470b-9739-373ebf61b358 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
