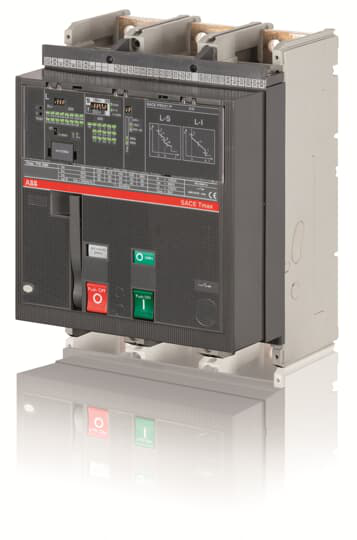

ABB 1SDA062754R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000T7S 1000 PR231/P LS/I In=1000A 3p F F M
ABB 1SDA062754R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 30 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 14.725 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b8867a07-64db-4e2f-90ea-5a115bf8947f Italy (IT)
- Simplified SCIP
- 5d3e86fd-49cd-4297-a74a-9542f0e34844 Spain (ES)9983727a-0831-4b4e-8bfc-501b83aaf726 Netherlands (NL)6ef0dad3-385f-4844-95c2-688cbcef9c62 Norway (NO)be34d825-3209-4648-a5a9-1a58a1c3ab03 Poland (PL)36cd487b-05f1-479f-878d-4e55f0de2b37 Finland (FI)87f1eb73-0514-4e65-8805-979b0e53c58e Germany (DE)656ebd45-33e6-424d-9519-09bec7fb067d Denmark (DK)338addea-0a19-4bdf-9f23-5e9eac77bacd Germany (DE)ff47c574-c8a3-4004-ba1d-2f931d6bd909 Czech Republic (CZ)81de8319-c957-4985-9bd9-00b9237e0a09 Poland (PL)f0bbec5e-3f6d-40e5-9811-c40bd78f2e88 Netherlands (NL)768dc1b0-cc12-4340-a50d-94d6a14af506 Netherlands (NL)06337441-b378-4cf0-b027-808fa8a5c560 Estonia (EE)618a1a0f-7453-4c3a-9815-f35b8ec85f9f Greece (GR)e3ecb0c8-d2cf-4458-a163-c3dd04a6b2b5 Portugal (PT)9ddc3bd9-1c3e-445c-a9af-8e1fce9ec0e0 Bulgaria (BG)f94eebb6-9e2c-4f24-845a-e825b88232b4 Sweden (SE)efcf6bc3-6bea-47a0-8811-e848c2f8e817 Poland (PL)bcd4fd7f-3eb2-4688-be59-f3f6600eef60 France (FR)0b60a9e6-532a-4db5-b734-e18154e6a0ff Sweden (SE)3598acdb-2d14-4015-8f04-31c4af9d5112 Netherlands (NL)b2bab38f-fdc9-4e01-a4ae-19f94a56c357 Croatia (HR)24cbfc71-2738-4e63-88c1-b0b281b23869 Germany (DE)d27e6811-db0a-43d1-8359-e86a6d3de49e Germany (DE)50d18547-57f2-4869-b78b-66db1f6b0031 France (FR)cc46646c-c245-44d2-9387-22b20e9f1d93 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
