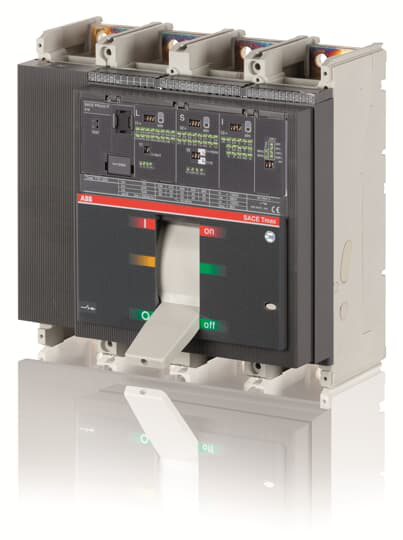

ABB 1SDA062747R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1000 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR232/P-LSI R 1000T7S 1000 PR232/P LSI In=1000A 4p F F
ABB 1SDA062747R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 30 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Release
- PR232/P-LSI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 12.5 kg
- Product Net Width
- 280 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a0224ba7-feb9-467d-9ebf-4debaf25a96b Italy (IT)
- Simplified SCIP
- ee1927fb-738b-452e-8d36-7d42fb976910 Norway (NO)781db7ac-0368-462b-a5e7-c5d71e2837b7 Spain (ES)9c60d74d-6531-44ae-95d8-cb7ea2db358d Netherlands (NL)01147bc8-00a2-414b-b904-2d3e4e5da18a Netherlands (NL)d6f8d80c-9386-4a81-88a1-52d7f872c3f2 France (FR)479b01ec-305b-403a-bfb4-869b28eb6860 Netherlands (NL)d2a2617c-4e9b-4264-af57-faf7be4843fb Netherlands (NL)4c0624f8-2b4e-4b0b-addf-fe97baaaf9f5 Estonia (EE)0cf4533c-fab2-4a92-a266-191ad022e640 Czech Republic (CZ)0068e664-778d-4f72-b32e-2c4589ca2534 Poland (PL)f8ba59b6-8c3c-4cbf-9a91-597dda4c7bbc Croatia (HR)a97dfd81-fbc0-44a1-b9a8-5f10b7f722fc Denmark (DK)5a664c0b-eeed-428b-abb6-90a123c9ea84 Germany (DE)2dda7f0c-2f53-42ad-bf28-d03435ba2f21 Germany (DE)bb7bc358-badd-486c-a438-08e4f558a32b Sweden (SE)f5d3380b-00e7-48d9-98fe-923d54e63301 Germany (DE)5ae4b517-421a-4b06-a717-72b35c48e194 Poland (PL)7c2be27a-e673-4e5b-89e7-edb8510e1145 France (FR)9834f1aa-6a54-45af-8559-57938c3650a4 Bulgaria (BG)2f03e2e4-7358-4bc5-a72c-de6a3cb3770a Sweden (SE)a713e7c1-14b2-434c-81bc-551abca6010f Greece (GR)e54384cf-e1e0-4381-a059-fd4d49d6b4d6 Portugal (PT)071566f9-a5ff-4dcb-adef-01f7aa2c4f25 Poland (PL)18422dd5-8a82-48f0-8ce6-b3b44076db3e Netherlands (NL)5f7e98d6-b884-47f5-9318-cacea9c0dfa2 Finland (FI)5884a0c0-89ca-4860-b67a-35e03249b025 Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
