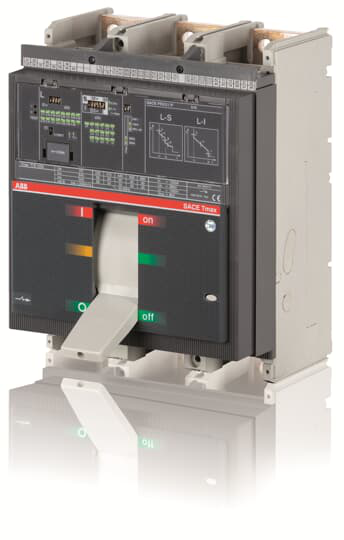

ABB 1SDA062738R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1000T7S 1000 PR231/P LS/I In=1000A 3p F F
ABB 1SDA062738R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 30 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 13.634 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- fbe41912-95c4-4bcd-ba46-e3373c61aace Italy (IT)
- Simplified SCIP
- 1cc68435-e732-4e30-b35a-bb9da122ff0c Portugal (PT)c9ac2996-920c-4604-bdc6-281aeb52f1d0 Greece (GR)5859a6f6-8be9-4975-aa6b-bbebea8e6bbe Netherlands (NL)d88a7910-053f-4ddb-b73e-f72aca5866a5 Netherlands (NL)49ecd91c-89c8-4f95-9d59-ef61f1ed08e5 Netherlands (NL)9eab5500-cbec-4c54-b85a-ebf94ef46507 Poland (PL)355668f6-6a50-458f-9c22-f87802b42149 Czech Republic (CZ)5d8e978a-d339-4a29-8e43-a551a2be782a Denmark (DK)048949a1-980d-4484-a6f6-28ae63e0b0eb Finland (FI)696e0bf6-d16a-49c9-a085-93f3a42e3790 Germany (DE)00ac5722-271f-4c97-a5c3-6ae1f0c1ce61 Poland (PL)d7c05b40-5df5-40ad-8dd4-9166297a27a7 Germany (DE)eb90e8ed-975a-434a-bbca-1f24b8bd54d5 Croatia (HR)f5be384a-ac5f-4c0e-9958-f4909f034b19 Norway (NO)fcfe2b70-297c-45f0-86b4-f989a1c8a243 Netherlands (NL)86e52fc2-2eea-4c7f-88d2-951f7c167a22 Spain (ES)fe53ad83-7f8e-4f3d-acdf-adec3635cc1a Sweden (SE)a33dea62-2cf8-4e9b-a755-fe094fcb93b0 Germany (DE)5f71aed1-d098-46bb-b708-41aa5a800c72 Germany (DE)d86fc8f1-3eb2-4a99-82d4-32106948a986 Netherlands (NL)f8e8deb8-6be3-490f-b37f-572dde15bae1 France (FR)d0195f6d-2dfa-4116-91da-58fe7d29080f France (FR)aca71f5c-e0d4-44a7-980c-e889d5741a92 Poland (PL)8c26bce1-992c-4d50-99c7-222abb638ddb Estonia (EE)b58c901b-c460-4cfc-a341-ef29c9dd637b Bulgaria (BG)89a086cf-f5a4-4186-8004-a85d76df9e67 Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
