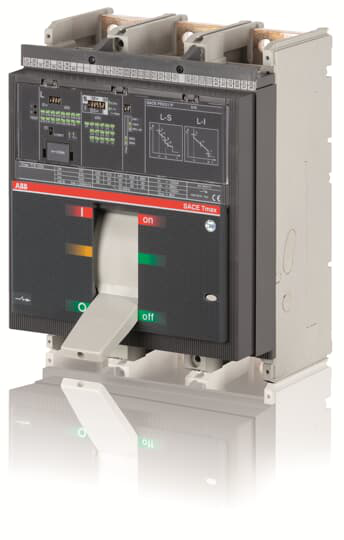

ABB 1SDA062642R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7H 800 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 800T7H 800 PR231/P LS/I In=800A 3p F F
ABB 1SDA062642R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 19.3 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 31.5 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 70 kA(400 V AC) 70 kA(415 V AC) 70 kA(440 V AC) 65 kA(500 V AC) 50 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 9.7 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 9c93bee1-29c5-48f5-8b6a-5f643477166e Italy (IT)
- Simplified SCIP
- fc87bf58-570d-4141-97ef-492ce44f531a Germany (DE)31daf1eb-07dc-4d65-911c-afa66dc3cb71 Netherlands (NL)bf15c148-da48-49e0-aef5-06c04779812c Croatia (HR)1e8abe0c-7d7f-4536-b974-0960c8065a48 Poland (PL)aa7a7733-ce7d-43a2-be17-5c09536981a8 Finland (FI)cdfaf617-89d9-412e-94ca-0143f2a49ee6 Greece (GR)3c61f56e-a7eb-4b6b-8f9b-550e823c18eb Portugal (PT)f6a181f2-7649-4655-b874-6aa28ae538f9 Sweden (SE)8bf3dfc1-933e-4522-b53e-72313e236c17 Bulgaria (BG)e02cf81f-cabd-4de8-b2e1-998d0ca7b2e8 Poland (PL)8d30e98f-37c5-414a-87f5-bbfd5520189a France (FR)996df36b-1bb6-470d-9422-62602732195c Sweden (SE)6c576a66-d5ca-47c0-9c2d-8d80aa1db124 Germany (DE)ecdcee6d-c273-4841-96c6-98de338c0ede Germany (DE)ff533a4c-69bf-470e-bed7-3807c90669ed Germany (DE)9b902bd3-e20a-467a-b6c1-8781eba0b5d4 Czech Republic (CZ)550a78e7-f182-40a0-b9e0-2d34438ae915 Denmark (DK)e36d9144-43d4-4c4b-91c1-9e20b0c8be31 Poland (PL)a653a742-b727-48b3-8ed1-c5bb98d00071 Netherlands (NL)d438cfc2-2e26-44c9-902f-f2388fa1dcf4 Estonia (EE)565fe491-faea-4208-9f72-72147eea8cc3 Spain (ES)c93ae2e3-f443-4ad6-9ea9-06d8c1237938 Netherlands (NL)7dfda20e-e7b5-4ac5-8e5d-4eee00bd3e94 Norway (NO)fdd621c2-d365-4a9b-b112-b8f6bf8b826d Netherlands (NL)32001627-5e0c-4b9d-8dfb-353188aa858b Netherlands (NL)a653bfe0-d926-4d79-9131-51242cdbcf60 France (FR)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
