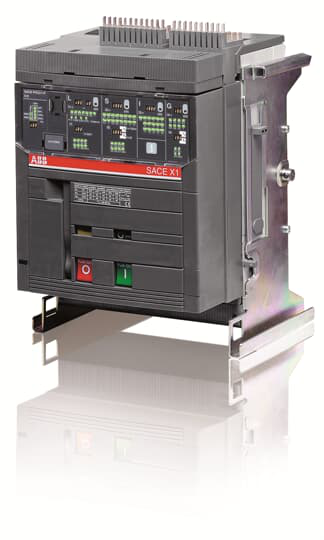

ABB 1SDA062480R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR CIRCUIT-BREAKER EMAX X1B 1250 THREE-POLE WITH SOLID-STATE RELEASE IN AC PR331/P-LSI R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDX1B 1250 PR331/P LSI In=1250A 3p W MP
ABB 1SDA062480R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 4000 cycleUe = 500 ... 690 V 2000 cycle30 cycles per hour
- Mechanical Durability
- 12500 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 253 W
- Product Main Type
- SACE Emax
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Current (Ie)
- 1250 A
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 42 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Rated Voltage (Ur)
- 690 V
- Release
- PR331/P LSI
- Release Type
- EL
- Short-Circuit Performance Level
- B
- Standards
- IEC
- Sub-type
- X1
- Terminal Connection Type
- Withdrawable Circuit-Breakers
- Version
- W
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- Document availability on demand
Classifications
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 254 mm
- Product Net Height
- 343 mm
- Product Net Weight
- 14 kg
- Product Net Width
- 284 mm
Environmental
- Environmental Information
- 1SDC200009D0201
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
