ABB 1SDA062033R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

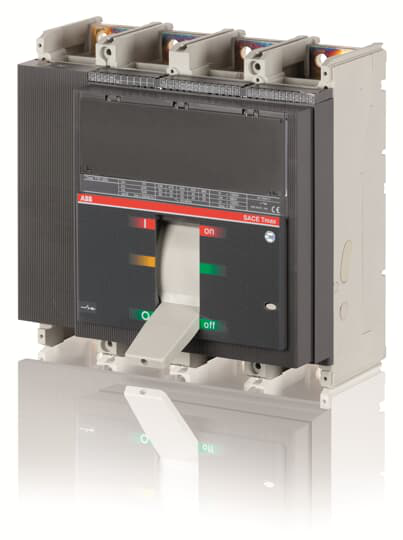

SWITCH-DISCONNECTOR TMAX T7D 1000 FIXED FOUR-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISMT7D 1000 4p F F
ABB 1SDA062033R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 30 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Switch Disconnector
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 A
- Rated Uninterrupted Current (Iu)
- 1000 A
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 12.5 kg
- Product Net Width
- 280 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 459c761a-1abf-4187-be4e-e09a150387a8 Italy (IT)
- Simplified SCIP
- 0b65bb23-e771-404e-8416-0280cd566da2 Croatia (HR)68b18961-a3c0-45fb-89f8-118428049d28 Finland (FI)6e0e7eb1-20d5-4eb9-9537-9437abea493f Denmark (DK)5c92c7a7-28c0-4883-ba23-c639b10a5c06 Germany (DE)252b759a-6a08-4fba-a90d-dbf2ce1e9b93 Czech Republic (CZ)3ea1fb40-06c0-44ed-8710-b082bd1e9be9 Poland (PL)fcb43bde-dbe1-43fa-b717-305c8312f2b5 Netherlands (NL)dbeb86ff-76d1-4110-b1c3-c3370c4be52e Estonia (EE)a2253544-66a3-4c7d-9ef3-5b55ad7ad6a9 Greece (GR)210b66af-703c-45d7-9837-0c10aa076041 France (FR)0e283140-9e45-465a-a2d0-677c77ea1714 Sweden (SE)0304b948-293d-416b-9f86-855b087af18c Germany (DE)6df13a84-d49a-424e-99d0-dca58f67294b Portugal (PT)b33c98a3-3d48-4014-97fe-f38a53ff12f0 Bulgaria (BG)c8b1f431-9f46-4594-83be-bce68652d373 Sweden (SE)5037e16e-7b81-4931-9524-f3b4826c0904 Poland (PL)f0acee02-7879-4ce5-b4ee-b5ea609251d6 Netherlands (NL)885c1a39-c9aa-4dbf-9251-ecbb60d04c6c Norway (NO)3e9edead-9814-4b83-913a-bd53cf7e4f6b Germany (DE)513ed0d4-bc3f-44d9-9ac3-152a1b085a4f France (FR)c5edce1c-beaa-4524-9e71-b33cb6ed2ce3 Netherlands (NL)c5f57b97-982c-4e08-a161-582680b112ae Spain (ES)e4edcf5b-d0c0-43e3-82ee-92fccb0ce272 Netherlands (NL)73b41db5-12c9-43a6-9604-9a09d97fcf2c Netherlands (NL)95b2964f-9f9a-4928-b43e-a090619442e3 Poland (PL)882fa94e-9514-40ed-954b-bd02c77b6862 Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
