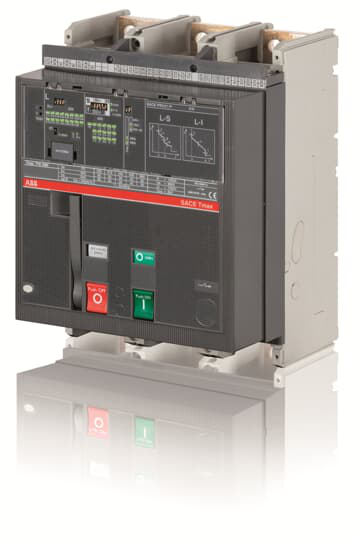

ABB 1SDA061981R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T7S 800 FIXED THREE-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 800T7S 800 PR231/P LS/I In=800A 3p F F M
ABB 1SDA061981R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 2000 cycle60 cycles per hour
- Mechanical Durability
- 10000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 19.3 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 800 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 40 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Release
- PR231/P-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T7
- Suitable For
- T7M
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 178 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 11 kg
- Product Net Width
- 210 mm
Environmental
- Environmental Information
- 9AKK10103A1059 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b6860209-aff8-4be3-934b-80c6ca81bdbc Italy (IT)
- Simplified SCIP
- 73885021-4707-41b9-8339-5299749f896c Netherlands (NL)434ae651-c716-4efd-900b-8c04cbef7758 Portugal (PT)c43ba501-97d7-43d4-9c66-9b8dcb6e4222 Bulgaria (BG)b21e51e3-d2f1-4328-b249-0f9218b35efd Sweden (SE)17573e2b-b086-4fa7-84cd-8256627d2686 Poland (PL)8c59c987-b792-4353-97af-db685a0fb5f0 Germany (DE)616310d4-5927-40c2-b5c0-828172684bc8 Czech Republic (CZ)f80f4227-e174-4e5e-9f0d-a3ff09ea476e Denmark (DK)df4bacc3-d136-4df3-bf5d-f55e9efe5602 Germany (DE)c19f1969-69be-4bb9-a2d3-874daa7c1a55 Sweden (SE)9ca8a00b-cf01-4477-a9b3-23f5562b1ad6 Germany (DE)f9933099-99db-4560-8ac3-36117dd8939e France (FR)2f491939-1286-4fee-afc4-45994c71140d Netherlands (NL)6687a370-4b54-4347-a523-8dc9954ba310 Spain (ES)b2fcd6b0-8f33-440d-9b10-44ed50a1d14c Poland (PL)645451dc-239b-4c11-a32c-06b18321f728 Netherlands (NL)60a5b0e4-4159-462d-97e4-7ca2d51d49e9 Netherlands (NL)766c5d94-5990-42be-a4e2-123cca8fa1d7 Estonia (EE)1f224504-f468-44af-bc73-18a0a8a8cf9e Greece (GR)1265e3a1-5217-437f-9da8-e8c5fd3dca1b Poland (PL)eb233e67-22ad-4a03-a30d-6a800b40debe France (FR)96fde24f-94c2-46b8-8ed6-f94a1c46c0b0 Netherlands (NL)265d52c4-3814-40dc-9c14-e6220a4cac21 Germany (DE)ace02503-040d-4544-9132-c5d90b397d89 Croatia (HR)7506d4ed-7e41-418c-b73f-dfae61378428 Finland (FI)f3941b5c-d0d0-4e29-9a79-8141f712a497 Norway (NO)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
