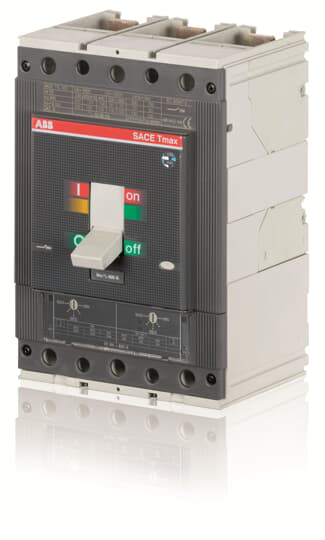

ABB 1SDA060631R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 AT5N400 UL/CSA TMA 400-2000..4000 3p F F
ABB 1SDA060631R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 19.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 600 V AC600 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (240 V AC) 65 kA(480 V AC) 25 kA(600 V AC) 18 kA(500 V DC) 2 Poles in Series 25 kA(600 V DC) 3 Poles in Series 16 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- TMA
- Release Type
- TM
- Short-Circuit Performance Level
- N
- Standards
- UL
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4927 >> Molded case circuit breakers
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.8 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 56950cc9-0fc6-46b8-9ac5-282c03985fe4 Italy (IT)
- Simplified SCIP
- ff083145-9e3c-470e-9e9e-5bd2dcb73bce Spain (ES)40c5c858-e922-41d7-9b4b-8335d1a40492 Netherlands (NL)fd26c304-c6c4-469d-bafd-127120cf8bda Czech Republic (CZ)eeffa748-2394-42eb-9585-1645715f0481 Poland (PL)36291ebb-0804-4eb4-8e6d-c66ba251c43e Netherlands (NL)7a3d27ea-4a30-4030-8286-08351d191796 Germany (DE)b99f8dfc-759c-46ca-a1c8-29e3f0ae3f77 Croatia (HR)fe121b1c-8ee3-47c6-97a6-e323f61e9867 Germany (DE)cb8354b4-f9b7-4a87-aac7-a1373048831c Poland (PL)efec44ef-ec67-4d06-86bb-61e6f3853241 Norway (NO)bd6fc70f-2a00-4c5f-a376-d317338ac23b Netherlands (NL)e2fdca6a-e9bb-4d94-8e89-adc05e5e2b50 Estonia (EE)4d44d82d-738f-4005-8729-d728b37fe65c Greece (GR)8e52d344-2b2b-427f-b408-e843e147f49e France (FR)28e2bd44-8f55-40a0-85fd-2757b249fffa Finland (FI)5f82bbed-1461-4bae-afed-accba028d7c0 Netherlands (NL)be54ca81-6b2c-4652-9be0-0851a8331d69 Sweden (SE)81d1439c-8076-474e-8a5b-1315519b1d0c Portugal (PT)00cd553e-4a5d-4f59-b663-bf64dfa21993 Bulgaria (BG)d22a9bc7-c6fb-45b5-8c2b-c87592bfc194 France (FR)5a879378-1b3f-4207-b25b-8e386edec091 Netherlands (NL)17d8411b-e828-47e5-a8cf-2cf2d581b7e1 Denmark (DK)7f066d79-838a-4d8d-ba11-18dbdfadea25 Sweden (SE)8c1c4f5b-0f7a-4365-8a3f-7c4625fdc9f9 Poland (PL)3e90a706-4ff9-4d45-b611-777f7ed0c290 Germany (DE)f4684926-5106-4e89-a310-e92bbe37fbdf Germany (DE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- T5N400TW
Technical UL/CSA
- Interrupting Rating acc. to UL489
- (240 V AC) 65 kA(480 V AC) 25 kA(600 V AC) 18 kA(500 V DC) 2 Poles in Series 25 kA(600 V DC) 3 Poles in Series 16 kA
