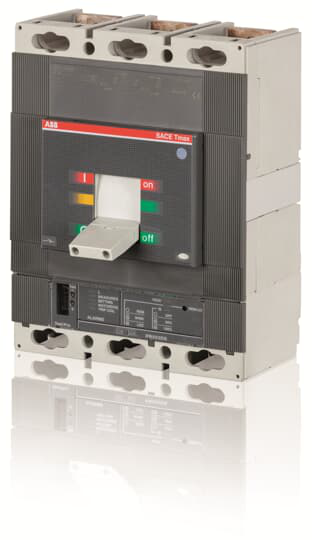

ABB 1SDA060304R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T6L 800 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR223EF R 800T6L 800 PR223EF In=800 3p F F
ABB 1SDA060304R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 5000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 32 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- CB
- Rated Current (In)
- Main Circuit 800 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 150 kA(230 V AC) 150 kA(380 V AC) 75 kA(400 V AC) 75 kA(415 V AC) 75 kA(440 V AC) 60 kA(500 V AC) 49 kA(690 V AC) 22.5 kA
- Rated Short-time Withstand Current (Icw)
- for 1 s 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 200 kA(230 V AC) 200 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 80 kA(500 V AC) 65 kA(690 V AC) 30 kA
- Rated Uninterrupted Current (Iu)
- 800 A
- Release
- PR223EF
- Release Type
- EL
- Short-Circuit Performance Level
- L
- Standards
- IEC
- Sub-type
- T6
- Suitable For
- T6
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Classifications
- ETIM 4
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 370 mm
- Package Level 1 EAN
- 8015644627720
- Package Level 1 Gross Weight
- 12 kg
- Package Level 1 Height
- 285 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 305 mm
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 268 mm
- Product Net Weight
- 9.5 kg
- Product Net Width
- 210 mm
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
