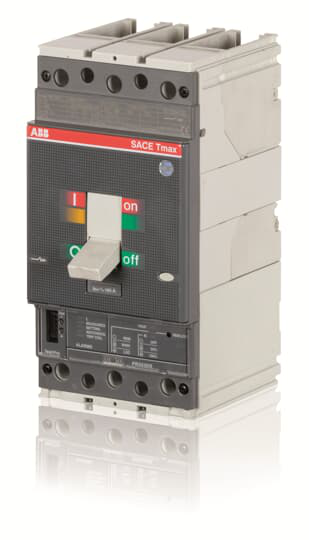

ABB 1SDA059491R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T4N 250 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR223DS R 160T4N 250 PR223DS In=160A 3p F F
ABB 1SDA059491R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 8000 cycle120 cycles per hour
- Mechanical Durability
- 20000 cycle240 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 4.4 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- CB
- Rated Current (In)
- 160 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 7 kA(230 V AC) 7 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(250 V DC) 3 Poles in Series 25 kA(500 V DC) 3 Poles in Series 16 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Release
- PR223DS
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC 60947
- Sub-type
- T4
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Classifications
- ETIM 4
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 286 mm
- Package Level 1 EAN
- 8015644618995
- Package Level 1 Gross Weight
- 3.5 kg
- Package Level 1 Height
- 228 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 228 mm
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 3.5 kg
- Product Net Width
- 105 mm
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
