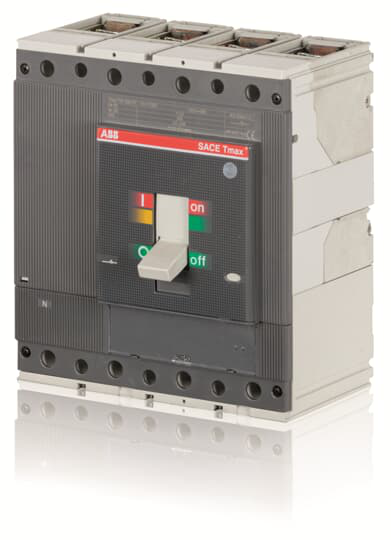

ABB 1SDA054602R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SWITCH-DISCONNECTOR TMAX T5D 630 FIXED FOUR-POLE WITH FRONT TERMINALST5D 630 4p F F
ABB 1SDA054602R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 41 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Switch Disconnector
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 800 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 6 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3000 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 5.458 kg
- Product Net Width
- 186 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 800b73aa-69b0-446f-b4b0-068f41a0153c Italy (IT)
- Simplified SCIP
- b7fb30b7-298a-41b3-8366-94590e9fde43 Sweden (SE)44fb4df8-c229-41a5-85fb-a6acdd591e84 Germany (DE)9148f5e3-0c1b-4bad-8073-866b6b4b0455 France (FR)f15ab3f1-982b-4954-8e3e-c92d6327c8c9 Netherlands (NL)40989912-253d-43ab-b524-3f0bdf53f7a9 Spain (ES)aced2e2e-9936-4424-a705-91482b31c51c Netherlands (NL)9fdf9a30-12f9-4e04-9353-bef50b2bd928 Finland (FI)df763317-f832-454d-a868-4981a4b97bba Netherlands (NL)820615b7-dbf3-4dd4-9672-9f04e229f762 Germany (DE)56a1e971-da66-4659-bffe-079ef59f960d Germany (DE)286a4e91-32a0-4f5e-a899-0b0e9c8ffd26 Croatia (HR)bf4f3907-b62e-46c6-a6c6-dab860994ad1 Czech Republic (CZ)26bfde67-4460-4f99-af96-604767a70a2c Poland (PL)6eb93eda-d825-4508-9935-9df57d42fe53 Norway (NO)416fc545-670f-4f99-91f6-4c5cf868744c Netherlands (NL)ae02a61f-23a2-46b8-bfc4-94f4e0e749e5 Netherlands (NL)1c9eb357-c0c3-4b9c-b429-8a71aac9d3d6 Estonia (EE)2c49563c-d50a-4232-84bb-ad3060f83a5a Portugal (PT)ddfa5d17-0c25-45a7-a077-48182b217d29 Sweden (SE)47a24c2b-b120-46df-841d-9c1b9bf1d2d8 Poland (PL)1857bdfe-ce6e-4ffd-bdb2-98e926dec8db France (FR)a7d9bb5d-9ef4-4978-98d6-396767f8f179 Denmark (DK)7e4568ab-f4b4-4021-a84b-3cacbfd8ae5c Greece (GR)a9bbf6ee-6d2f-4d22-8bb0-8f323acc0667 Bulgaria (BG)74ed4eab-e32d-49b1-ae51-a257f8bdc60c Germany (DE)34fb4e6e-a31e-4046-a0dd-74da597f8060 Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655616
- Minimum Order Quantity
- 1 piece
