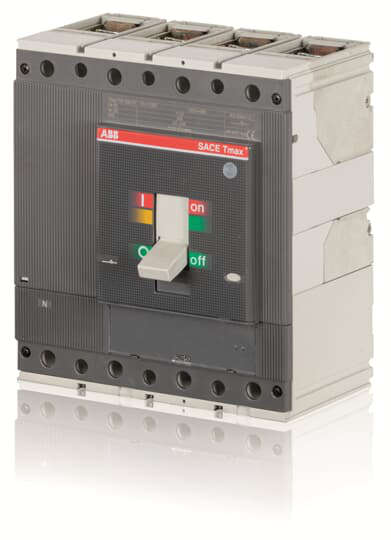

ABB 1SDA054600R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SWITCH-DISCONNECTOR TMAX T5D 400 FIXED FOUR-POLE WITH FRONT TERMINALST5D 400 4p F F
ABB 1SDA054600R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 16.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Switch Disconnector
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 6 A
- Rated Uninterrupted Current (Iu)
- 400 A
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3000 V
- Test Voltage Max (Utest)
- 3000 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 5.472 kg
- Product Net Width
- 186 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 589159d5-0945-415f-8498-665412027854 Italy (IT)
- Simplified SCIP
- bcb09c46-4b46-425f-9db8-951888f274a6 Poland (PL)1a4acb0f-173b-4f15-9df6-63979fe0cb7b Germany (DE)bb1fb6f8-1e39-409b-bc4c-b7aaf94d9b9a Poland (PL)e2f43e0a-04a8-437d-816a-5dc709ec73b0 Norway (NO)1201cb38-5614-4f57-b49e-1cc7c9873aed France (FR)b07bd7f3-3f88-4107-b8e6-223622229815 Sweden (SE)e8f46076-d043-4b25-887b-9b7b0bf7597b Germany (DE)af39ee33-d129-4d8d-97bd-23a75c6cf39c France (FR)80ed9396-d3c0-4898-ae06-fb2bd4e6fe11 Netherlands (NL)55bfe880-90d4-4340-9ab8-d9b6d4c44de0 Spain (ES)46f71b8d-7b71-4e43-8dbc-d0f22d2bea84 Netherlands (NL)54ef9ea8-d92f-4348-8ab3-a0c69ee38e78 Finland (FI)440853a0-f494-4fe3-8fc8-481d8807702c Netherlands (NL)3fd445d0-de8f-47be-951a-16b6fd797b2a Germany (DE)94305b50-34f0-4b00-8d9a-52cd83bf5fcf Germany (DE)c17a6f49-3c47-4d48-89a9-06cb72ab0d82 Croatia (HR)7f76282f-4cc7-42c0-9bdf-48aa3a5aa52a Czech Republic (CZ)ed7aca7e-0ff0-4ddd-aa06-50caa3eee911 Poland (PL)3189dfc3-cab5-40fd-b865-898df3ff479d Netherlands (NL)328e1385-c6fb-4339-a37e-d397e571ca75 Netherlands (NL)4e9f5e44-6edb-451e-8ca4-2fe1c653349b Estonia (EE)41ce5e52-aa69-4787-9961-c5b7b9b0a260 Portugal (PT)5667a9d9-ac36-419e-9dbd-08550fb3e584 Sweden (SE)ce7c75e6-1358-465b-b96a-f753940497b3 Denmark (DK)66a76ad5-468b-48c7-a398-6d831820764d Greece (GR)848360e4-0160-424d-919d-9d2a64e9b1fd Bulgaria (BG)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655614
- Minimum Order Quantity
- 1 piece
