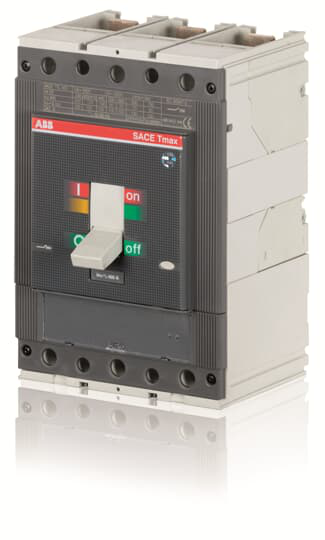

ABB 1SDA054599R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SWITCH-DISCONNECTOR TMAX T5D 400 FIXED THREE-POLE WITH FRONT TERMINALST5D 400 3p F F
ABB 1SDA054599R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 16.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Switch Disconnector
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 6 A
- Rated Uninterrupted Current (Iu)
- 400 A
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3000 V
- Test Voltage Max (Utest)
- 3000 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 3.25 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 3a155678-128e-49f8-8288-802c23ae6159 Italy (IT)
- Simplified SCIP
- 7a2b463c-b131-4d3a-8c87-7081a16d9cfe Poland (PL)7401cc63-fa85-43b5-a79c-549d3960c1ea Norway (NO)643e7965-9057-4dbb-a0cf-49fa81b24340 Greece (GR)6ef7a8c3-e1db-4be2-b204-b00d91b599d6 Germany (DE)f1279a38-90a3-4a0d-80e7-5a39625336bb Netherlands (NL)71cdea13-c0de-4927-aa8a-1e246ed4a3f2 Germany (DE)1db8fc72-1b9f-45ea-9660-ecc8c0fac625 Bulgaria (BG)061f4998-cf6e-4f3e-bfdd-ef806eeae4b7 Germany (DE)c836e3bc-f611-465c-95ce-649fb648edc5 Croatia (HR)c9dbe0b1-8447-42a6-9fa9-2844b2dc2a08 Netherlands (NL)792bcf0c-f5ec-4b0f-8791-55a7998030bf Finland (FI)20ae6b77-ba3e-4075-8da7-509850c5c9be France (FR)8a325227-08e1-4fd6-85af-a806fd813217 Poland (PL)eebfa5df-6b34-4050-b406-70ab328ac5d6 Sweden (SE)305d187c-6dc2-4e71-b80b-56445585ae2e Netherlands (NL)d150dd98-cf1a-4354-babf-1b9b2d45e19f Poland (PL)fb22339d-2eb0-41fd-9489-3ca15651cd7b Czech Republic (CZ)095ae62a-b8a9-4238-b61b-146f3e398661 Estonia (EE)9c1f20cb-21fa-4c23-abbe-699c48386f0f Portugal (PT)1994b35c-122f-4815-8f5a-4e8d48a1f655 Denmark (DK)328815d0-d209-4976-a920-17528e0de5c5 Sweden (SE)58757622-a7f2-4b87-8a16-ff9e0cdaee31 France (FR)68541c78-c8bc-4188-8f65-0a44b2a042e2 Germany (DE)eb8cdaf9-b8ba-4255-9d6a-ef7b127cc204 Netherlands (NL)354183ae-308b-4928-8197-23d83e7b4b61 Spain (ES)abadb034-14e6-4477-a190-ab48bbd9a06e Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655613
- Minimum Order Quantity
- 1 piece
