ABB 1SDA054597R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

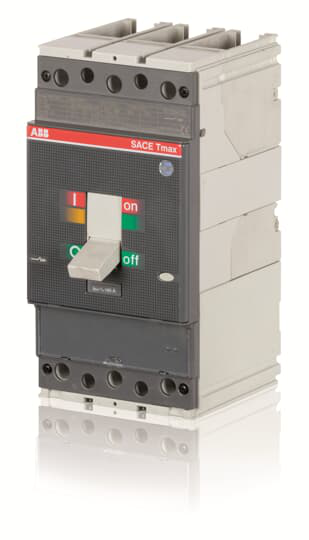

SWITCH-DISCONNECTOR TMAX T4D 320 FIXED THREE-POLE WITH FRONT TERMINALST4D 320 3p F F
ABB 1SDA054597R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 17.6 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Switch Disconnector
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 3.6 A
- Rated Uninterrupted Current (Iu)
- 320 A
- Short-Circuit Performance Level
- D
- Standards
- IEC
- Sub-type
- T4
- Suitable For
- T4
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3000 V
- Test Voltage Max (Utest)
- 3000 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- Document availability on demand
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 3.254 kg
- Product Net Width
- 105 mm
Environmental
- Environmental Information
- 9AKK10103A1057
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 715f0fe9-038a-41b1-bd92-20167499bc69 Italy (IT)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655611
- Minimum Order Quantity
- 1 piece
