ABB 1SDA054517R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

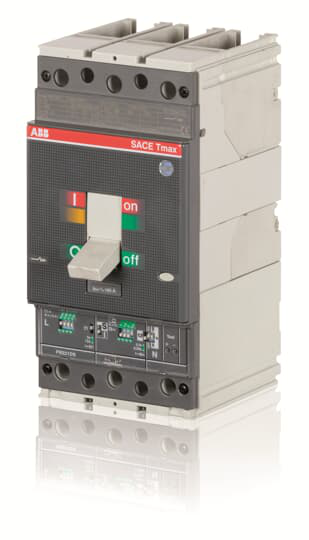

C.BREAKER TMAX T4V 250 1150V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 250T4V250 PR221DS-LS/I In250 3p FFC 1150VAC
ABB 1SDA054517R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 8000 cycle120 cycles per hour
- Mechanical Durability
- 20000 cycle240 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 10.7 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1150 V
- Rated Operational Voltage
- 1150 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (1000 V AC) 12 kA(1150 V AC) 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (1000 V AC) 20 kA(1150 V AC) 12 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- V
- Standards
- IEC
- Sub-type
- T4
- Suitable For
- T4
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront for Copper Cables
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 3.5 kg
- Product Net Width
- 105 mm
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- a53397d5-cbf7-42b6-95c6-f975e1929ea4 Italy (IT)
- Simplified SCIP
- a93352f8-9533-4b70-884d-81677d3a5f2b Poland (PL)4b21ae83-f829-49b0-978f-e9a997a90165 Norway (NO)3e56f5ab-8d13-43de-b923-8cd1b23a23d4 Denmark (DK)e532ad7e-650b-4789-914f-8eb230a72842 Greece (GR)4c5d463d-e3b0-43f5-bac0-ea05a8de427a Bulgaria (BG)724fcbc3-ecd7-4320-b614-1cde80fb441a Germany (DE)628e1ec0-a9ef-40c4-b6b8-ced0589715e0 Netherlands (NL)46e7cf47-cf97-44fc-8d65-9c9bbddecb34 Germany (DE)0343dd4f-1347-4536-bf5f-6c8dc70bfee7 Germany (DE)c0147c77-d395-4dc8-9f91-4b59dac0c6bc Croatia (HR)8038c97d-aae4-4c17-9211-be6617f682d8 Czech Republic (CZ)7af58f7c-17d5-457a-9f84-1255777c8a69 Poland (PL)f1e0c89f-d211-4ee0-a301-c755bd7527c2 Netherlands (NL)b1bf5165-2578-4f81-a19f-10ad7fdbff01 Netherlands (NL)7d626fc3-17e4-49a8-abd6-c7f90a3ce05c Estonia (EE)ba2ab238-ded7-4581-acf5-f6e7e9950830 Portugal (PT)ac4eb6bc-0eb7-400a-95af-7c58e6b51aea Sweden (SE)0896d35d-6278-4043-9dab-d6dde8fdeae6 Poland (PL)3790b548-131e-47f1-a94e-0837c66be19c Finland (FI)efc9b87f-0a0b-421c-9742-ee83a6c628db France (FR)bea4e883-32e1-4459-aacb-d1ec25978acf Sweden (SE)9228390d-cd21-4bbb-8a17-4b1122339f50 Germany (DE)7b830a90-aa3d-4097-b400-c3c186e16934 France (FR)e6f98861-452a-4430-b827-3985c7d76975 Netherlands (NL)9bf0a508-7958-41b8-b4cc-4bb5e304ba9e Spain (ES)f526ac8f-4a85-4daa-98d7-f53d023ef0d1 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85352100
- Minimum Order Quantity
- 1 piece
