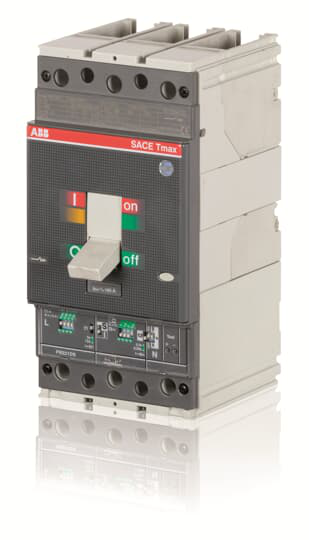

ABB 1SDA054509R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T4L 250 1000V AC FIXED THREE-POLE WITH FRONT TERMINALS FOR CABLE Cu AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 250T4L250 PR221DS-LS/I In250 3p FFC 1000VAC
ABB 1SDA054509R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 8000 cycle120 cycles per hour
- Mechanical Durability
- 20000 cycle240 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 10.7 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 1000 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (1000 V AC) 12 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (1000 V AC) 12 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 1000 V AC
- Release
- PR221DS-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- L
- Standards
- IEC
- Sub-type
- T4
- Terminal Connection Type
- Fixed Circuit-BreakersFront for Copper Cables
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 3.5 kg
- Product Net Width
- 105 mm
Environmental
- Environmental Information
- 9AKK10103A1057 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- d1929f95-57c8-42e1-a323-0cb1ff2f083e Italy (IT)
- Simplified SCIP
- 7ffcd44d-5891-4b83-9690-4fca2413e7d1 Norway (NO)0e82a2b5-cdf1-4c68-9d44-bbdc76c7b9a7 Finland (FI)a23c3367-1ceb-475f-8a5f-218b62006264 Poland (PL)e5d5fd88-cc36-4916-8a5f-3fb708d4da70 Denmark (DK)cd346fd2-7369-4e35-8ded-c851565e298c Netherlands (NL)467682e7-a2fa-4cd8-86fd-06e5adca3fc6 Germany (DE)1ecb6adb-dbb4-4961-a625-16163aedff87 Germany (DE)afe00873-b770-4e29-864c-6cf49c2c3a41 Croatia (HR)e76c60fa-16ef-464c-9dd4-1fd7559e830f Czech Republic (CZ)83996cfd-02ad-4a8b-a480-6721ceed2da2 Poland (PL)23e3b41f-7f39-4fc8-afa6-372de1c44dc3 Netherlands (NL)d143582d-917b-4964-a4b1-c0c13c81e5cd Netherlands (NL)5879df52-54fb-4ed7-84e0-aada5e595eff Estonia (EE)d76d618f-582a-46f1-bf76-d7f45f26a67b Greece (GR)77320885-6d02-491a-835b-b6577e83bd0a Portugal (PT)0c8dc37c-ae6e-4263-a56d-f8b11ff475c5 Bulgaria (BG)53b970fd-79d3-495d-b96f-89d89eb92011 Sweden (SE)ab872925-08e5-40db-8a27-bfd313280c79 Poland (PL)8cb245d3-8065-47b7-8aa6-7c9cbd6428cf France (FR)19e14faa-dc1a-4819-b310-ad08182ceb07 Sweden (SE)fd6c054b-cb31-4c1c-80e7-b4143e5e98be Germany (DE)6f2372b3-25bc-42bc-8aeb-f0a81d91412c Germany (DE)d50684c1-09c6-41db-973c-4409176951a3 France (FR)5a2ce9c4-9e06-48c8-a1a2-4a88565b71ca Netherlands (NL)b71a48b3-26f2-464c-bb80-de5c655fd834 Netherlands (NL)d9f55919-1930-4d97-8ca0-fffcc3c2a075 Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3642485
- Minimum Order Quantity
- 1 piece
