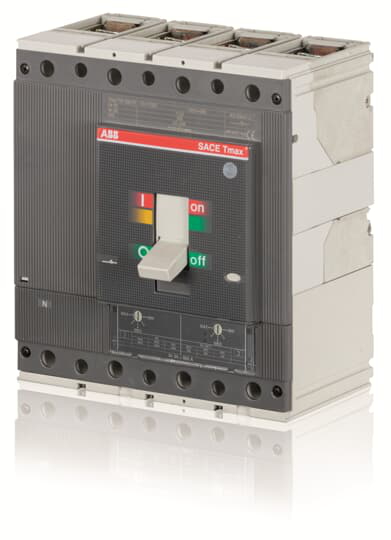

ABB 1SDA054478R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 A FULLY RATED NEUTRALT5N 400 TMA 400-4000 4p F F InN=100%In
ABB 1SDA054478R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 19.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 25 kA(750 V DC) 3 Poles in Series 16 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- TMA
- Release Type
- TM
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 5.717 kg
- Product Net Width
- 186 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- c6b99936-e846-494b-9b43-7a0f02745fd6 Italy (IT)
- Simplified SCIP
- a058a055-bdf9-4a51-8e6d-dab284882e1b Norway (NO)9d724974-daa7-4bc7-933f-6a0022ee3f22 Finland (FI)a0f3f374-8850-41fc-8f69-b09ad49f4b48 Poland (PL)a15e88e1-896d-4273-a580-a52a99d7ad9f Denmark (DK)ab407d4a-620b-43d5-a73b-cf2cf72a55d5 Netherlands (NL)b16f0e65-f4c5-49a6-9f8e-8e4938eba79e Germany (DE)e8833362-3087-4172-9da8-43712027e0e9 Germany (DE)8fb93586-7945-44b7-b471-00b931d88674 Croatia (HR)0715bb8a-a763-4cf3-ab87-585a77d01ca3 Czech Republic (CZ)fe2cae09-c414-4907-8801-c3b55a36e6f5 Poland (PL)9ae659f4-ddeb-4ef6-ad16-7363e060b009 Netherlands (NL)453be9be-2363-40c2-a062-7a09df23afc5 Netherlands (NL)49f2e709-3e42-4c1b-901a-0ef02df9bd94 Estonia (EE)fe48c98d-3030-490f-9506-a8f30c497575 Greece (GR)7440f82e-a329-477b-b088-927568fa2b91 Portugal (PT)c7a2b31d-6036-45d5-9d06-ba396eb51252 Bulgaria (BG)5a4978ae-d452-49a8-b460-62b92aca0efe Sweden (SE)3694de43-e829-4047-a1a5-e686a7016e1e Poland (PL)1304c2c3-77b5-46f9-a893-0e157047cd39 France (FR)b05a4c8f-670c-4348-8d98-7ad1652ecf25 Sweden (SE)4519e5bc-70c8-4cf3-a394-a9e6e8949e56 Germany (DE)6a6b1e8f-60bb-4224-aae1-02a229515b31 Germany (DE)fe41dd58-9ee5-4632-8191-a5d3b0533888 France (FR)76c4342a-37dd-4637-bd37-b3e34f2186dd Netherlands (NL)fc97a6be-652d-47ed-90b9-4192611e9595 Spain (ES)e6313340-bd02-4952-9c5b-3f9e18c1cfe6 Netherlands (NL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
