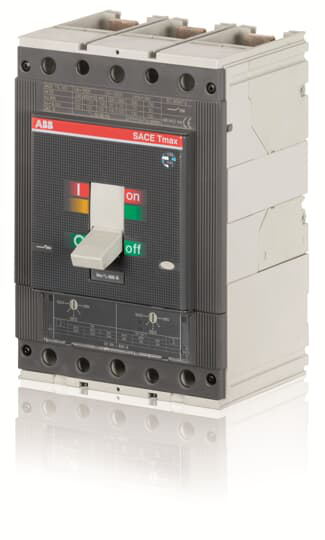

ABB 1SDA054456R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 630 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 500 I3=2500...5000 AT5N 630 TMA 500-5000 3p F F
ABB 1SDA054456R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 5000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 28.8 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 500 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 25 kA(750 V DC) 3 Poles in Series 16 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Release
- TMA
- Release Type
- TM
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.579 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- b369b3e1-2514-4bd1-890f-1a7c3f0da4d0 Italy (IT)
- Simplified SCIP
- cc318231-4108-4216-8c99-d6c58e685348 Finland (FI)2d4c053a-592d-4189-b4cf-66610a739e45 Poland (PL)42e4bf8c-6386-4776-a505-7cdb94a94ea5 Denmark (DK)b6142632-af42-4f70-b5db-4a9205dfe30b Netherlands (NL)7efc0da7-3da6-421a-ad0e-b9d18359f10a Germany (DE)51d4e778-f746-4da5-9b2d-ae919cd00062 Germany (DE)00728f53-23b1-4e7e-96e9-9c6806c1530e Croatia (HR)63c29827-4ed0-425e-bfcc-7f14a98d04a6 Czech Republic (CZ)1871b1f7-5ab4-40dc-82b6-6ddd9142d05b Poland (PL)559ceeed-04af-4edf-b12d-767879fa299b Netherlands (NL)5ff62d41-e8fa-4606-8ad4-f26ef613d69d Netherlands (NL)d23ec4c7-f3ec-45f3-a148-1aa47561bc55 Estonia (EE)7bbde3c9-689b-4a25-9476-d5d8dddc951e Greece (GR)0211e3f8-143b-4b1c-b533-6faf1e5ebc1d Portugal (PT)b0c590ce-dae8-4651-9cf7-f35abea367c3 Bulgaria (BG)1baffa92-ca36-4ed0-b471-f9300a221c89 Sweden (SE)98ab9c5a-2b14-4bf3-bf92-438686b70a24 Poland (PL)51d24280-b61c-462f-a462-09d518656aae France (FR)f8f2edd7-373b-40c0-bb51-7139e2f2ce08 Sweden (SE)e8eab919-b356-4a85-a64f-5f98c674716d Germany (DE)32c8be9d-5e1a-4dfb-816f-e6c4368f75af Germany (DE)0ce19415-6721-4508-b3b0-4df71ddf81e7 France (FR)6fd5db72-1e98-4ff9-81f8-a97399327cf9 Netherlands (NL)ce44f998-27e2-4a8e-ab33-3689940efb5b Spain (ES)3000cc4b-012d-46ac-a2a5-937625e9cf51 Netherlands (NL)092c61fb-46cb-4fc2-82d9-eda3f8c016d4 Norway (NO)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655293
- Minimum Order Quantity
- 1 piece
