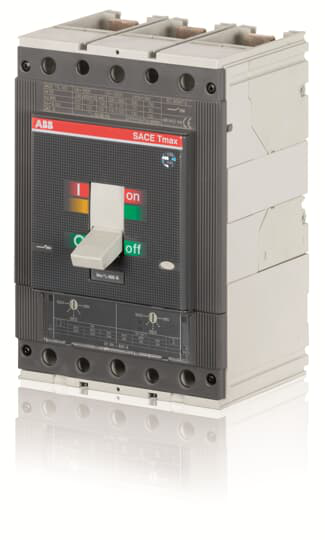

ABB 1SDA054448R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5L 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 320 I3=1600...3200 AT5L 400 TMA 320-3200 3p F F
ABB 1SDA054448R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 13.6 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 320 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 200 kA(230 V AC) 200 kA(380 V AC) 120 kA(400 V AC) 120 kA(415 V AC) 120 kA(440 V AC) 100 kA(500 V AC) 85 kA(690 V AC) 70 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 200 kA(230 V AC) 200 kA(380 V AC) 120 kA(400 V AC) 120 kA(415 V AC) 120 kA(440 V AC) 100 kA(500 V AC) 85 kA(690 V AC) 70 kA(250 V DC) 2 Poles in Series 100 kA(500 V DC) 2 Poles in Series 70 kA(750 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- TMA
- Release Type
- TM
- Short-Circuit Performance Level
- L
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.8 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 88e1e5ad-2777-46ee-a7d7-18a563624135 Italy (IT)
- Simplified SCIP
- 1928e50f-88c2-4441-bec3-9801661257e3 Netherlands (NL)999349c9-ffb3-4af1-a9ef-bce1c2a9aa91 Spain (ES)7ec166d2-0322-4ba7-bdab-bfd883003abe Netherlands (NL)a809b306-ba64-4f74-8aa1-33408b470bae Poland (PL)2c99aaa1-805e-4583-8605-9419b5e2a426 Denmark (DK)d6edd4fc-571f-410b-8c07-670872623f4f Netherlands (NL)5680c0f9-cff9-41bd-97a3-ec66ae793c04 Germany (DE)9387369e-2393-41fc-b895-84031cbaff75 Germany (DE)e899a461-afa1-4a1e-a624-b17ff4b87357 Croatia (HR)bf46e619-d378-48f4-b28e-0bbc5f823564 Czech Republic (CZ)fd76f4e3-9185-457d-9245-4c7a25f6c51e Poland (PL)d5c66ad2-fafa-4f87-8a2c-f2005083e0f6 Netherlands (NL)88043ab7-97c9-41c9-8570-7887945bac14 Netherlands (NL)3c8d0a1a-b028-47da-80b6-cf45ea8d2a35 Estonia (EE)5dc58b71-642a-47d5-a10b-c067340ac4e2 Greece (GR)ce2c075b-7729-456c-859e-985cdc11ff77 Portugal (PT)4a2dbb8b-34f4-4b4f-aab0-ad1b96ce636d Bulgaria (BG)476e607b-3ba9-4534-8138-4c828d405262 Sweden (SE)49e7f592-1475-43ff-8a48-a395ff5ce8f7 Poland (PL)8a373fb4-14c6-44b4-8c24-ea74ddb39ce7 France (FR)c31aa5f5-c509-4c0b-ab88-5e51858a1436 Sweden (SE)6c303c68-8071-4a59-88f2-ca8954ea2c7d Germany (DE)c83796a7-7c48-400d-8542-79bfab8374ca Germany (DE)b3a6b2f0-3066-4845-8b37-820a6a9d6b8f France (FR)f28dd382-6ab1-46d5-94f3-f05e5c4e7119 Norway (NO)2000e8da-f5c9-4bb0-9c2b-4236d4640e8c Finland (FI)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655300
- Minimum Order Quantity
- 1 piece
