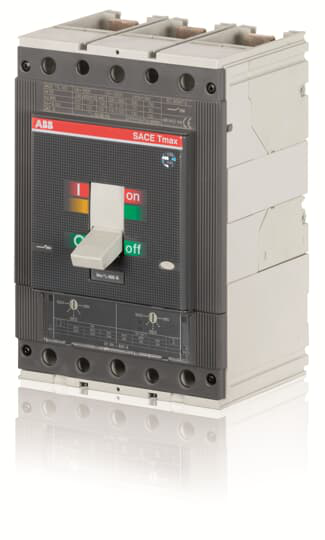

ABB 1SDA054437R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 AT5N 400 TMA 400-4000 3p F F
ABB 1SDA054437R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 19.5 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 25 kA(750 V DC) 3 Poles in Series 16 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- TMA
- Release Type
- TM
- RoHS Date
- null
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.549 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- e240f15e-f16b-4399-ab3b-dce16dffa499 Italy (IT)
- Simplified SCIP
- 3764b526-f8d2-4398-912b-bc15a4c74014 Netherlands (NL)7293d1ef-589e-4b73-a8f4-1f55f27602f7 Norway (NO)a9f1aaf6-daa7-44d5-ae12-853adb7135d3 Finland (FI)3ff03868-1abe-440f-8c1d-d9d5f040bf26 Poland (PL)a6382117-d803-4f22-916c-b2cd0a418289 Denmark (DK)fff2cf62-101e-4ace-96c4-29f83ef6f895 Germany (DE)825937c9-1f0c-4909-bd2a-0b8795ac7555 Netherlands (NL)8e46bdd9-c2e4-4367-9b30-9f7107f84564 Greece (GR)36225241-3ee4-4b0d-ac1a-8c3ac9fad520 Estonia (EE)6452a0f3-d237-416a-a8a9-b0a0b77a93d6 Netherlands (NL)e1eb7bcb-a4d0-4297-828f-3f17588cd889 Netherlands (NL)97dbc296-447f-4b75-a4db-1480347f6a52 Poland (PL)edcfe745-4afc-4ca3-bd92-396f088cce14 Czech Republic (CZ)ca4e78d4-6076-468e-b5e2-f3aa1233e340 Croatia (HR)4fdf8fcd-aaaa-45b8-80ae-04fd2daa13bc Germany (DE)0f70a09b-cd21-4ca8-b23e-8b8d46f10517 France (FR)c9205c91-cedc-4fa5-acc9-f75e27977c27 Germany (DE)0407c6b9-dd84-461d-aa51-ccbf47cac33a Germany (DE)ca23f5f3-e4ab-447a-9db2-e92e7aa456e5 Sweden (SE)284a8814-ca39-4961-baff-2dfed7608b07 France (FR)875fb050-6239-4ad3-82f1-27455283b1b3 Poland (PL)13f16384-bbfb-47cd-9031-e872c96a4864 Sweden (SE)36b27bb5-2fbb-4753-893b-b6613839fb01 Bulgaria (BG)f99c5542-84fe-4743-9b2a-429609d212a2 Portugal (PT)ed70c4f8-2cb6-40e7-9f3f-d2b77b4b55cb Netherlands (NL)19e4fd73-540e-4dc1-958d-8040a5f04720 Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655292
- Minimum Order Quantity
- 1 piece
