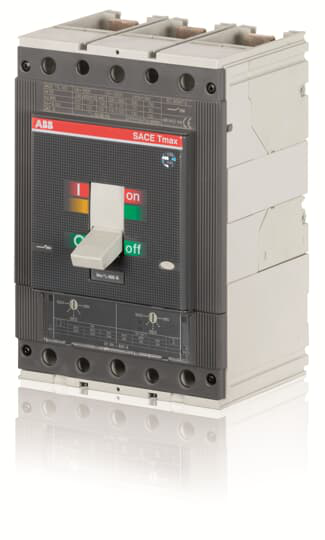

ABB 1SDA054436R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5N 400 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 320 I3=1600...3200 AT5N 400 TMA 320-3200 3p F F
ABB 1SDA054436R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 7000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 13.6 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 320 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 70 kA(230 V AC) 70 kA(380 V AC) 36 kA(400 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 30 kA(500 V AC) 25 kA(690 V AC) 20 kA(250 V DC) 2 Poles in Series 36 kA(500 V DC) 2 Poles in Series 25 kA(750 V DC) 3 Poles in Series 16 kA
- Rated Uninterrupted Current (Iu)
- 400 A
- Release
- TMA
- Release Type
- TM
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 4.494 kg
- Product Net Width
- 140 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 8cdc5dd9-37b5-46ba-99cf-a7632c1ce87a Italy (IT)
- Simplified SCIP
- 72bfab1e-8275-4104-a336-dced45670e46 Poland (PL)419b35e4-6d60-42c8-8769-79e14387a0f0 Finland (FI)72d40195-278e-4462-86a8-30128e255082 France (FR)863ca969-e787-4d4d-8331-c06b9574fb72 Germany (DE)b43a9e51-4cab-4ff1-97e5-138a1dcf1f92 Germany (DE)8eafb782-c1a6-42c0-8dc8-65e9fc699fd1 Sweden (SE)03b3003a-d2cf-4c2a-960f-33800918712d France (FR)b6a12bdd-0f20-48c5-a3b5-19e522d32ac2 Poland (PL)1396c4f2-6bce-46c3-9ef3-f05ddd9332fb Sweden (SE)4000a525-f831-475d-b10f-13fabfa46128 Bulgaria (BG)df2d48a6-809f-4a10-b5a7-044dda6b5a9f Portugal (PT)800c7c5f-db41-4044-bd10-f0f2c277d08e Greece (GR)ae67131f-c4dc-44da-98fe-7fb0112f12fb Estonia (EE)128ec7cc-7a12-4297-875d-ff872e25b5f0 Netherlands (NL)1eb62259-6fa6-4177-9e3a-d9b2754f63c1 Netherlands (NL)c11d3463-2120-401c-a37d-175062353606 Poland (PL)f28ad8fd-93c5-4d8c-b9d9-855f50e44dfd Czech Republic (CZ)9eea24e1-4a7e-43d1-bacb-6cb0fc898b96 Denmark (DK)602cb388-99e2-4d98-9428-fe616cb082ec Norway (NO)bcc60dbf-7cf5-4f78-ac93-bd8a09a7e4fc Croatia (HR)e9c54079-24af-43f2-8ec5-c24fac2e16cc Germany (DE)7485128b-bc8f-4cc4-bcf9-37cf9176c83a Germany (DE)c0ca1704-6790-4b0e-91cb-f1bfdf19cd49 Netherlands (NL)0d1a14a8-f3a8-4261-82c9-516856b2b523 Netherlands (NL)8e345532-cb13-4f3c-8b5e-06f686266510 Netherlands (NL)65443fe6-c0e9-44cd-83c9-5e659510fa4d Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655291
- Minimum Order Quantity
- 1 piece
