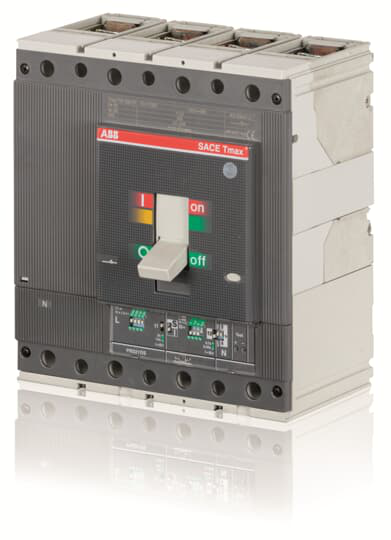

ABB 1SDA054408R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER TMAX T5S 630 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 630T5S 630 PR221DS-LS/I In=630 4p F F
ABB 1SDA054408R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Electrical Durability
- 5000 cycle60 cycles per hour
- Mechanical Durability
- 20000 cycle120 cycles per hour
- Number of Poles
- 4
- Power Loss
- at Rated Operating Conditions per Pole 41 W
- Product Main Type
- SACE Tmax T
- Product Name
- Moulded Case Circuit Breaker
- Product Type
- Automatic Circuit Breaker
- Rated Current (In)
- 630 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V AC) 25 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 50 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 40 kA(500 V AC) 30 kA(690 V AC) 25 kA
- Rated Uninterrupted Current (Iu)
- 630 A
- Release
- PR221DS-LS/I
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- T5
- Suitable For
- T5
- Suitable for Product Class
- Moulded Case Circuit Breakers
- Terminal Connection Type
- Fixed Circuit-BreakersFront
- Test Voltage at Industrial Frequency for 1 Minute
- 3500 V
- Test Voltage Max (Utest)
- 3500 V
- Version
- F
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 103.5 mm
- Product Net Height
- 205 mm
- Product Net Weight
- 6.047 kg
- Product Net Width
- 186 mm
Environmental
- Environmental Information
- 9AKK10103A1056 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- edf7545a-b426-417c-8643-2637381ea7fd Italy (IT)
- Simplified SCIP
- 70ce8e61-73e4-4075-89e9-6f7eb9478e9b Netherlands (NL)3a453979-c531-47f9-b115-5b0153a3997d Spain (ES)1cb5f5b0-6597-471c-892c-7f25432bf5ac Netherlands (NL)a810abe9-39c7-4e91-901e-e0d25c26d312 Norway (NO)bf67cb76-fb74-4492-a166-c82669f969f7 Sweden (SE)c7511e70-f4d6-497b-ad2a-36460d34d697 Poland (PL)412c7edf-5d64-4884-b079-570d13586089 France (FR)f128d138-f010-4329-9018-180d61c5a101 Sweden (SE)6fc25fda-a2f1-4ac5-a25e-38607b819192 Germany (DE)de82e0e5-f42d-473d-98f1-cd57a8b09451 Germany (DE)d89ac2d8-bb6c-4fe9-a928-d3c922094310 France (FR)1fc81ee2-0806-4f89-9204-ef17a6c93004 Denmark (DK)7d75101e-33f0-460e-bd2a-650b1e38eb72 Netherlands (NL)e89d4f52-0ee3-4056-a139-2c5e1f0e6ecb Germany (DE)0ed34524-4da4-4cd3-8702-7c35c56da49d Germany (DE)4f84c457-fa74-49a0-8555-02ca3f2ba3af Croatia (HR)5c134c83-83c5-4f81-b279-06bbb5cb33be Czech Republic (CZ)c0d8317f-7bb3-4ffe-9b80-2b907375397d Poland (PL)183f5895-9cb3-47ea-a49d-1dd4ff77c5cf Netherlands (NL)2ea18f03-5a50-4360-85eb-0b1a08dbce5c Netherlands (NL)ced3404c-c917-4e6d-82eb-bc71689b267d Estonia (EE)fb9ec62c-08d7-4c51-a5b9-0538d5a31662 Greece (GR)e6c0b294-7bed-4c2c-b8f3-1b1bf235bd5b Portugal (PT)ef6d979a-77aa-4c21-a0fe-732a491b14c3 Bulgaria (BG)c91b4e53-6a2f-48f6-830e-e0b8fe2661f8 Poland (PL)93fd3af3-f7a7-45b7-ade7-4ad7d8844233 Finland (FI)
Ordering
- Customs Tariff Number
- 85362090
- E-Number (Finland)
- 3655341
- E-Number (Sweden)
- 3180388
- Minimum Order Quantity
- 1 piece
